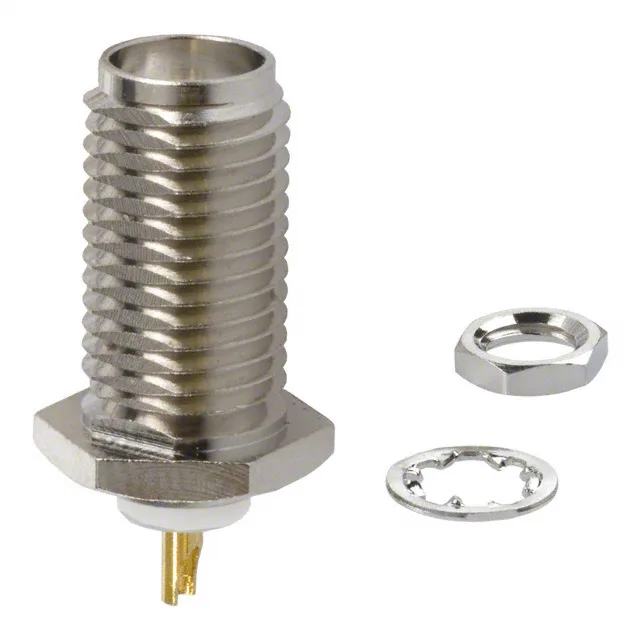

901-9890-RFX — Amphenol product photo
Amphenol

Amphenol RF 901-9890-RFX SMA Receptacle, 50 Ohm, 18 GHz

MPN901-9890-RFX
Active

Amphenol RF SMA receptacle, 901-9890-RFX, 50 Ohm, 18 GHz, panel mount bulkhead, solder cup, gold-plated beryllium copper contact, 500 mating cycles, Bulk.

$9.8500Ref. price · indicative, final on quote
901-9890-RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-9890-RFX Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
FeaturesExtended Insulation
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

SMA Bulkhead Receptacle for 18 GHz Signal Paths

The 901-9890-RFX: The connector uses a threaded coupling for secure mating and includes the lockwasher and nut for front-side panel retention.

This is a bulkhead-front-side-nut receptacle: the connector body passes through a panel hole, and the nut and lockwasher clamp it from the front. The shield braid is soldered to the body, and the centre conductor is soldered into a cup — no crimp tool needed, but the solder joint must be clean to avoid cold joints that shift the impedance at 18 GHz. The 500 mating cycles rating means the gold-over-beryllium copper contact can handle repeated test-port or antenna swaps without the centre pin losing its spring force.

Frequently asked questions

What is the impedance of 901-9890-RFX?

The 901-9890-RFX is a 50 Ohm SMA receptacle, rated to 18 GHz maximum frequency.

What connectors mate with 901-9890-RFX?

The 901-9890-RFX is an SMA female socket receptacle. It mates with any standard SMA male plug (male pin) that uses a threaded coupling, such as the Amphenol RF 901-9881-RFX.
