With a 1A per contact current rating and 200V voltage rating, this is a signal-level connector — not for power distribution.
Mating Compatibility and Pinout

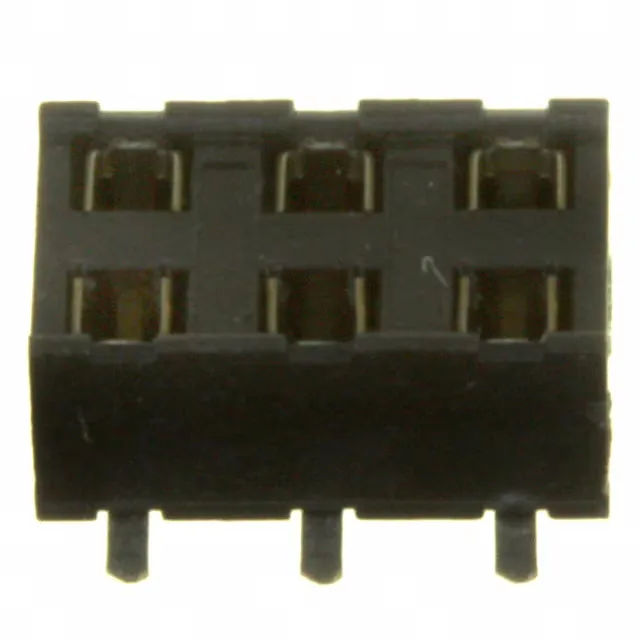

This receptacle mates with any Minitek 2.00mm pin header of matching pitch and 6 positions (2 x 3). The dual-row layout means the pinout is straightforward: two rows of three contacts each, all positions loaded. The bottom-entry design accepts the header from below the board — confirm the header orientation matches your board stack-up. For applications with vibration or cable strain, consider a header with a locking latch or add a mechanical retention method.
The base product number is 91596, so other position counts in the same series share the same footprint and contact design. If you need a different circuit count, the 91596 family covers a range of positions — check the spec table for options.
Contact material is beryllium copper — a high-strength alloy that maintains spring force over many mating cycles, which is why the gold plating can be specified at a relatively thin 30.0µin flash on the post side and still hold up.
