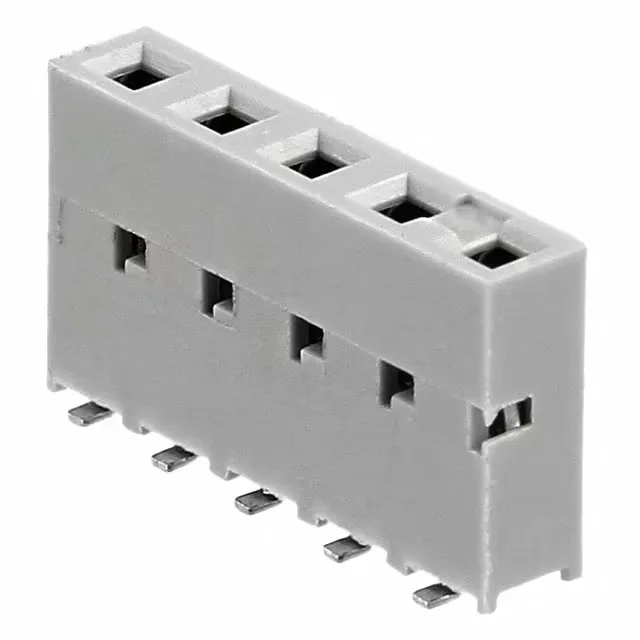

91601-305LF — Amphenol product photo
Amphenol

91601-305LF Dubox™ 5-Pin Female Socket Header, 0.100" Pitch

MPN91601-305LF
Active

Amphenol ICC (FCI) Dubox™ 91601-305LF, 5-position single-row receptacle, 0.100" (2.54mm) pitch, gold-plated mating contacts, surface-mount termination, mated stack height 10.81mm.

$0.9500Ref. price · indicative, final on quote
91601-305LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

91601-305LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle, Bottom or Top Entry
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGray
Insulation height0.275\" (6.99mm)
Insulation materialThermoplastic, Glass Filled
Mated stacking heights10.81mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Fit: Pitch, Stack Height, and Contact Plating

The single-row, 5-position layout keeps the footprint narrow — useful for board-edge routing or daisy-chain signal paths in tight enclosures.

This is a Dubox™ series receptacle, bottom or top entry, designed for board-to-board stacking.

Frequently asked questions

What is the mating connector for 91601-305LF?

It mates with a 0.100" pitch Dubox™ pin header (male) from the same series.

How can I order 91601-305LF or check stock?

Availability and current pricing confirmed at quote time.
