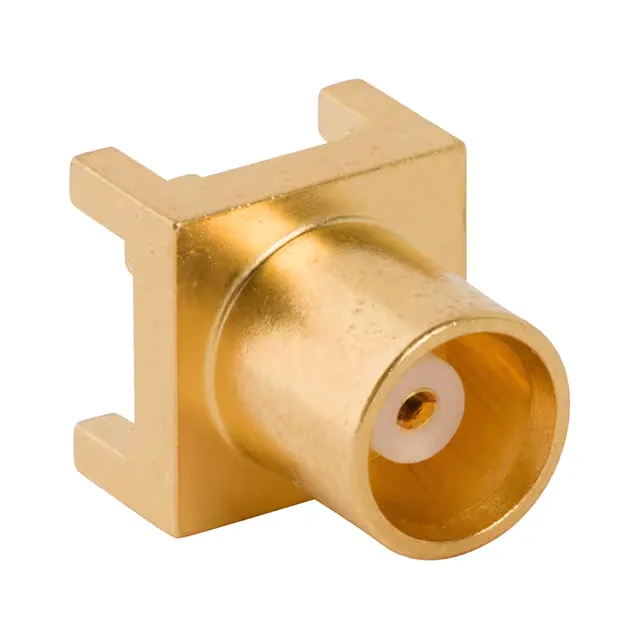

Amphenol RF MCX receptacle, female socket, 1 port, 50 Ohm impedance, 6 GHz max frequency, through-hole solder termination, gold-plated brass body, snap-on fastening, bulk package.
| Parameter | Value |
|---|---|
| Mounting type | Through Hole |
| Connector type | Receptacle, Female Socket |
| Fastening type | Snap-On |
| Frequency - max | 6 GHz |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The Amphenol RF 919-382J-51P is an MCX receptacle with a female socket interface, designed for 50 Ohm coaxial signal paths up to 6 GHz. The snap-on fastening gives a quick, positive blind-mate connection — no threading required, which saves time in dense panel or board layouts.
The 6 GHz max frequency covers most common RF bands — cellular (up to 6 GHz for 5G sub-6), Wi-Fi 6E, ISM, and GPS/GNSS.
The 919-382J-51P is a 50 Ohm MCX receptacle, the standard impedance for RF signal paths in telecom, test equipment, and wireless infrastructure.
