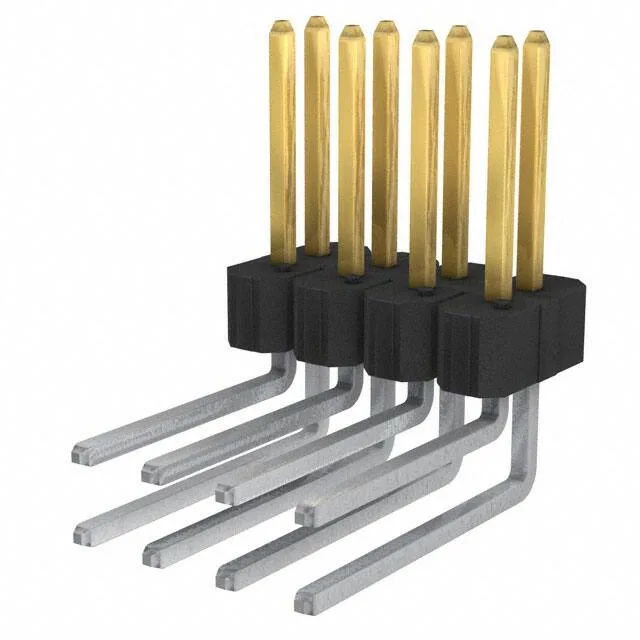

Amphenol FCI BERGSTIK II, 8-position dual-row header, 0.100" (2.54 mm) pitch, right-angle through-hole, male pin, unshrouded, 5 A, 110 V, 30 µ" gold plating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.318\" (8.08mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
It uses a 0.100" (2.54 mm) pitch on both the row spacing and the contact-to-contact spacing, so the board footprint matches the standard 0.100" grid common in prototyping and production layouts.
For a board-to-board interconnect that gets disconnected during test or field service, that gold thickness buys you a reliable connection over dozens of cycles.
Rated 5 A per contact at 110 V. The 30 µ" gold plating supports repeated mating cycles at that current without contact resistance degradation.
No, it is an unshrouded header — there is no plastic shroud around the pins, so the mating receptacle must be oriented correctly and the pins have no mechanical protection against bending.
