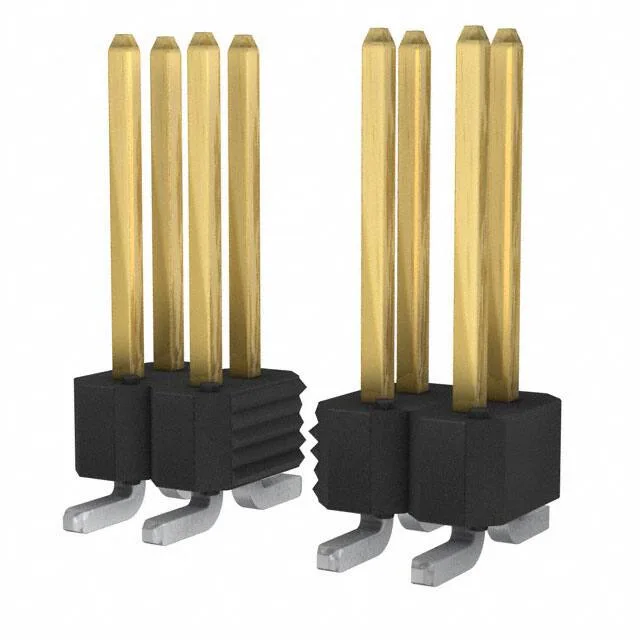

Amphenol ICC (FCI) BERGSTIK® header, order code 95278-105-20LF, 20 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, gold GXT™ mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.361\" (9.17mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Within the BERGSTIK® 95278 series the 20-position 95278-105-20LF sits between the 10-position 95278-101-10LF and the 30-position 95278-106-30LF — the 0.100" pitch, dual-row footprint, and gold GXT plating are shared across the series, so match the position count to circuit count.
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.
