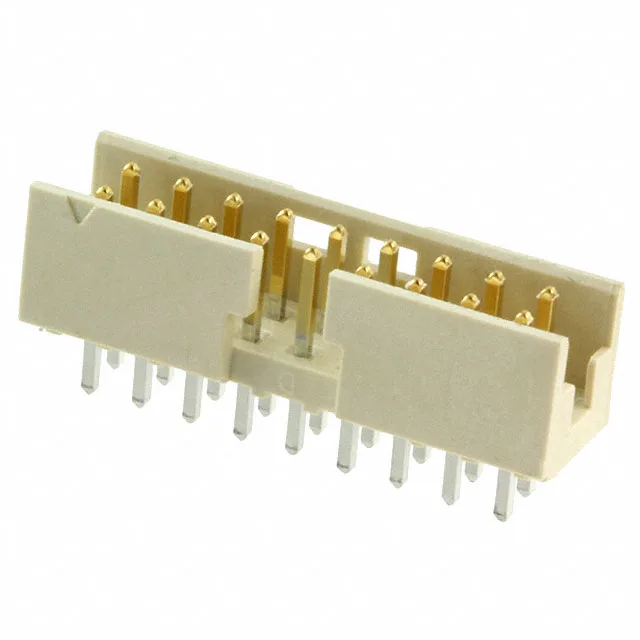

98414-F06-18ULF — Amphenol product photo
Amphenol

98414-F06-18ULF Amphenol ICC (FCI) Minitek 2.00mm Header

MPN98414-F06-18ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm, 18-position, 2-row, shrouded header, through-hole solder termination, gold GXT™ flash on mating contacts, latch holder fastening, rated 2 A at 200 V AC/DC.

$1.7000Ref. price · indicative, final on quote
98414-F06-18ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98414-F06-18ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.232\" (5.90mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions18
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - matingFlash

Product details

The 98414-F06-18ULF: This is a 2.00 mm pitch, 18-position, 2-row header from the Minitek® series.

Mating contacts are gold GXT™ flash — that's a thin gold layer over nickel. The solder tails are tin-plated, which is standard for wave solder. This is a signal-level current; don't push it for power distribution.

Shrouding, Keying, and Mating Half

A keying slot prevents mis-mating — you can't plug in a receptacle that isn't keyed for this position. The latch holder provides positive locking when mated. This header mates with Minitek® 2.00 mm receptacles (crimp or IDC) that have the matching latch. The insulation height of 0.232" leaves clearance for the receptacle body.

Frequently asked questions

Does 98414-F06-18ULF have a keying slot?

Yes, it includes a keying slot to prevent mis-mating with unkeyed receptacles.

What is the mating connector for 98414-F06-18ULF?

It mates with Minitek® 2.00 mm receptacles that have a matching latch holder. Look for crimp or IDC receptacles in the same series.
