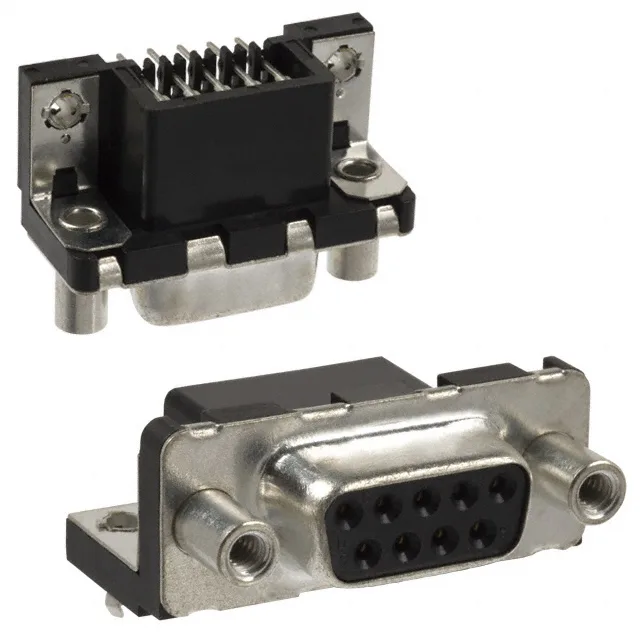

D09S13B4GV00LF Amphenol Delta D 9-Pin D-Sub Receptacle

MPND09S13B4GV00LF
Active

Amphenol Delta D D09S13B4GV00LF, D-Sub Receptacle 9 Position, 2 Rows, Right Angle Through Hole, Solder, Gold Flash Contacts, Board Lock, 5A per Contact, 300V, UL94 V-0, -55°C to 125°C.

$1.8400Ref. price · indicative, final on quote
D09S13B4GV00LF datasheet
StockIn Stock (51)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D09S13B4GV00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialBrass
Dielectric materialPolyester
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Mounting Brackets
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.409\" (10.40mm)
Positions9
Contact finish thicknessFlash

Product details

The Amphenol D09S13B4GV00LF is a 9-position D-sub receptacle from the Delta D series, configured as a right-angle through-hole mount with solder termination. The steel shell with tin-nickel plating provides EMI shielding continuity when mated with a conductive D-sub plug.

Key Specs for the Fit

The 9-position, 2-row layout uses shell size 1 (DE, E). The backset spacing of 0.409" (10.40 mm) sets the distance from the PCB edge to the mating face. The female screwlocks (4-40) on the mating side accept standard D-sub hardware.

RoHS compliance is listed.

Frequently asked questions

What is the difference between D09S13B4GV00LF and D09S13B6GV00LF?

Both are 9-position DE-9 D-sub receptacles with the same right-angle footprint, board locks, and 5 A rating. The D09S13B6GV00LF has 30.0 µin gold contact finish versus the flash gold on the D09S13B4GV00LF, making it the better choice for higher mating-cycle applications.
