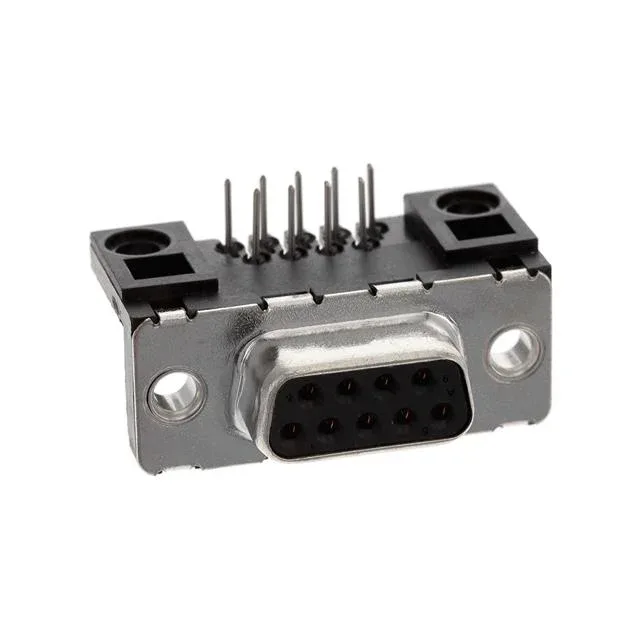

Amphenol FCI Delta D series D-Sub receptacle, 9 positions, 2 rows, right-angle through-hole solder termination, 5A, 300V, 30.0µin gold or GXT contact finish, shell size DE-9.
| Parameter | Value |
|---|---|
| Series | Delta D |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 300V |
| Current rating | 5A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold or Gold, GXT™ |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Backset spacing | 0.409\" (10.40mm) |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
The right-angle orientation with a 0.409" (10.40mm) backset spacing positions the shell edge a fixed distance from the PCB mounting surface. This backset is the dimension that clears the enclosure wall or panel cutout — verify your board-edge clearance against the 10.40mm backset before committing the footprint.
It is a D-Sub receptacle (female sockets) with a DE-9 shell size, 9 positions in 2 rows, right-angle through-hole solder termination.
