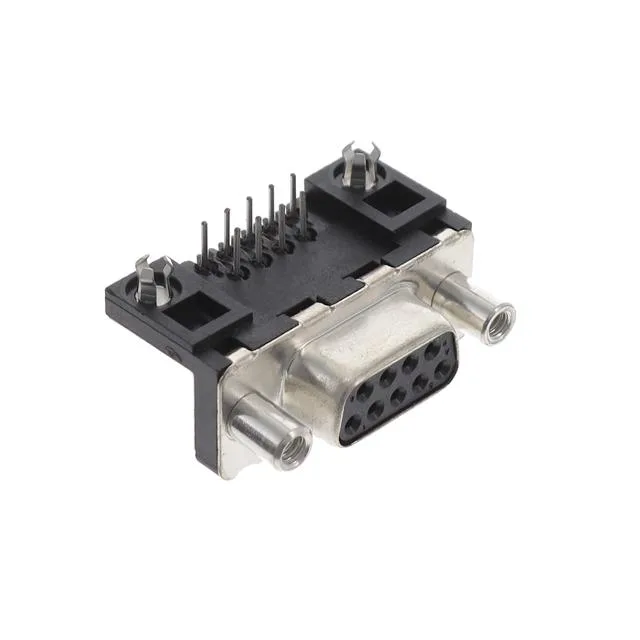

D09S23A4GV00LF — Amphenol product photo
Amphenol

Amphenol FCI D09S23A4GV00LF Delta D D-Sub Receptacle, 9-Pos

MPND09S23A4GV00LF
Active

Amphenol FCI Delta D series, D-Sub receptacle, female sockets, 9 positions, 2 rows, right-angle through-hole, solder termination, gold flash contacts, 5A, 300V, UL94 V-0.

$1.8900Ref. price · indicative, final on quote
D09S23A4GV00LF datasheet
StockIn Stock (37)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D09S23A4GV00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
FeaturesBoard Lock, Mounting Brackets
PackageTray
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.409\" (10.40mm)
Positions9
Contact finish thicknessFlash

Product details

9-Position Delta D Receptacle with Screwlocks

The mating side includes female screwlocks (4-40 thread), which provide the primary retention against vibration and cable strain once the mating plug is secured.

Board Lock and Mounting Hardware

The housing includes board locks and mounting brackets — the board locks hold the connector in place during wave soldering so the pins stay centred in their plated holes, and the mounting brackets add mechanical tie-down points for the screwlocks to work against.

The D09S23A4GV00LF is listed as Active on the lifecycle record.

Frequently asked questions

Does D09S23A4GV00LF have screw locks?

Yes, the D09S23A4GV00LF includes female screwlocks (4-40 thread) on the mating side, which provide the primary retention against vibration and cable strain when mated with a plug that has matching male screwlocks.
