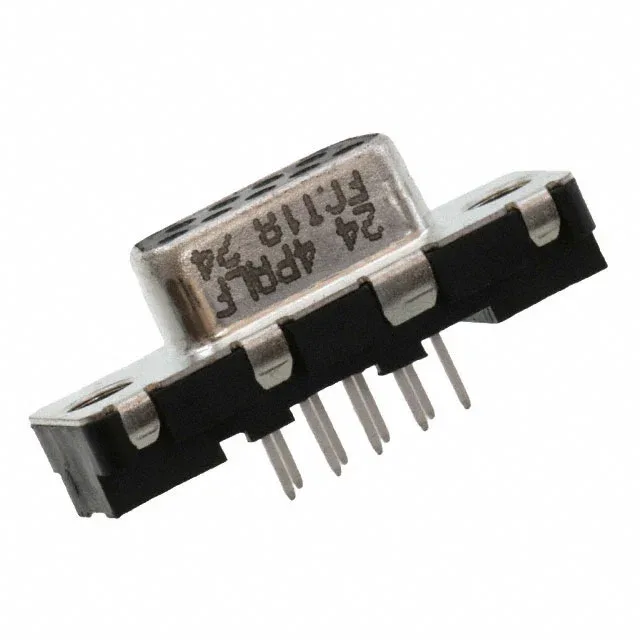

D09S24A4PA00LF — Amphenol product photo
Amphenol

Amphenol FCI Delta D D09S24A4PA00LF

MPND09S24A4PA00LF
Active

Amphenol FCI Delta D D-Sub receptacle, D09S24A4PA00LF, 9 positions, 2 rows, vertical through-hole solder, gold flash contacts, 5A per contact, 300V, steel shell tin-nickel plated, UL94 V-0.

$1.4600Ref. price · indicative, final on quote
D09S24A4PA00LF datasheet
StockIn Stock (53)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D09S24A4PA00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Contact finish thicknessFlash

Product details

The Amphenol FCI D09S24A4PA00LF is a standard D-sub receptacle from the Delta D series, offering 9 positions in a 2-row layout with a vertical through-hole solder termination. It accepts the matching plug with the standard D-sub shell size 1 layout. The unthreaded housing/shell flange means it is intended for board-edge or panel-mount applications where the mating connector is secured by the enclosure or a separate bracket, not by jack-screws through the flange.

At 9 positions across 2 rows, the contact-to-contact spacing inside the shell is tight enough that the aggregate current through the connector is what drives the temperature rise, not any single circuit. For a signal interconnect carrying 5A per contact, this connector runs well within its thermal envelope.

Gold Flash Contacts and Mating Cycle Life

The tin-nickel plated steel shell handles the shield ground path and provides the mechanical robustness the D-sub form factor is known for.

Frequently asked questions

What is the mating connector for D09S24A4PA00LF?

This receptacle mates with a standard DE-9 D-sub plug (male) having the same shell size 1 (DE, E) layout. The unthreaded flange means the mating plug should be secured by the enclosure or a separate bracket, not by jack-screws through the flange.

What is the closest functional alternative to D09S24A4PA00LF?

The D09S24A4PX00LF is the closest functional peer — same 9 positions, 2 rows, vertical solder, gold flash, 5A rating — but substitutes 4-40 threaded inserts in the flange for jack-screw retention. The D09S24A4GX00LF adds board locks to the threaded flange variant.
