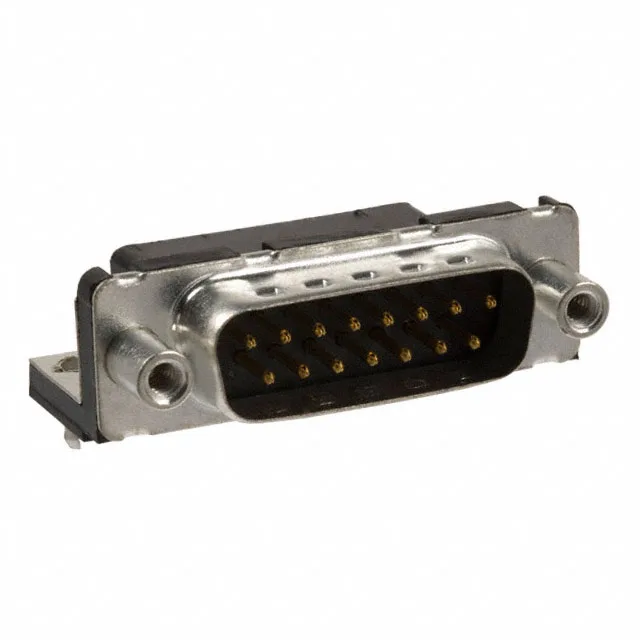

D15P13A4GV00LF — Amphenol product photo
Amphenol

Amphenol FCI D15P13A4GV00LF Delta D D-Sub Plug, 15 Pos, 5A

MPND15P13A4GV00LF
Active

Amphenol FCI Delta D D-sub plug, 15 positions, 2 rows, right-angle through-hole, solder termination, gold flash contacts, 5A per contact, 300V, board lock and grounding indents, 4-40 female screwlock, black PBT UL94 V-0 housing.

$3.6900Ref. price · indicative, final on quote
D15P13A4GV00LF datasheet
StockIn Stock (45)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D15P13A4GV00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialBrass
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents, Mounting Brackets
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.409\" (10.40mm)
Positions15
Contact finish thicknessFlash

Product details

Right-Angle D-Sub for Board-Edge I/O

The Amphenol FCI D15P13A4GV00LF is a 15-position Delta D-series D-sub plug with male pins, arranged in two rows in the standard DA shell size. The housing is black PBT rated UL94 V-0, and the steel shell carries a tin-nickel finish.

What the 5A Rating and Gold Flash Mean for the Fit

Rated 5A per contact at 300V.

Board Lock and Screwlock Hardware

The flange feature is a female screwlock on the mating side, threaded for a 4-40 screw — the standard hardware for DA-shell D-subs. If your assembly uses M3 screws, the D15P13A4GL00LF carries the same pinout and backset but with an M3 thread instead.

Backset Spacing and PCB Keep-Out

The backset spacing is 0.409" (10.40mm), measured from the PCB edge to the mounting flange. This is the standard dimension for right-angle D-subs and matches the footprint of the D15P13A4GX00LF. If your board layout has a tighter edge clearance, the D15P33E4GX00LF uses a 0.318" (8.08mm) backset — but that variant also carries a different base product number (D15P33) and should be verified against your PCB footprint before substitution.

Frequently asked questions

What is the difference between D15P13A4GV00LF and D15P13A4GX00LF?

Both share the same 15-position DA-shell layout, 0.409" backset, gold flash contacts, and board locks. The difference is the flange hardware: the D15P13A4GV00LF carries a female screwlock (4-40) on the mating side, while the D15P13A4GX00LF uses a housing/shell (4-40) flange feature.

Is D15P13A4GV00LF RoHS compliant?

Yes, it is listed as RoHS Compliant.

Where can I buy D15P13A4GV00LF?

Sourced to order against your BOM quantity. Availability and pricing confirmed at quote time.
