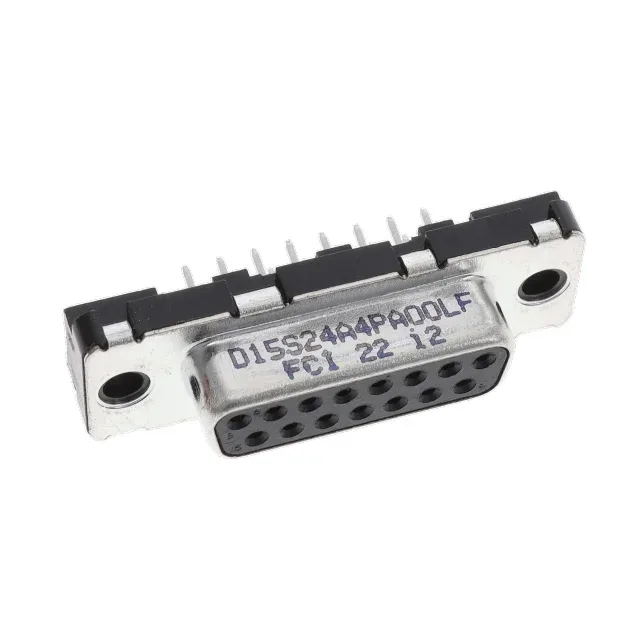

D15S24A4PA00LF — Amphenol product photo
Amphenol

Amphenol FCI D15S24A4PA00LF Delta D D-Sub Receptacle, 15-Pos

MPND15S24A4PA00LF
Active

Amphenol FCI Delta D series D-Sub receptacle, 15 positions, 2 rows, 5 A per contact, 300 V, through-hole solder termination, gold flash contacts, unthreaded flange, UL94 V-0.

$1.6000Ref. price · indicative, final on quote
D15S24A4PA00LF datasheet
StockIn Stock (44)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D15S24A4PA00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15
Contact finish thicknessFlash

Product details

The Amphenol FCI D15S24A4PA00LF is a 15-position D-Sub receptacle from the Delta D series, the standard-density DA shell size (2 rows). The unthreaded flange means this shell won't take jackscrews — it's a panel-mount with housing/shell retention, not a screw-lock joint.

Flange Feature: Threaded vs Unthreaded — What Changes

The D15S24A4PA00LF carries an unthreaded housing/shell flange. That means no jackscrews — the mating plug is held by the shell's friction and the board's solder joints, not a threaded lock. If your application is subject to vibration or needs a positive mechanical lock, the D15S24B4GV00LF carries a mating-side female screwlock (4-40), and the D15S24B4GX00LF adds board locks for extra shear retention on the PCB. The unthreaded flange is simpler and lower-profile, but it trades away the vibration-proof mate.

Frequently asked questions

What connector mates with the D15S24A4PA00LF?

This is a standard DA-size (15-position) D-Sub receptacle. It mates with any standard 15-position D-Sub plug of the same shell size — typically a male DB-15 style plug with solder cup or crimp terminals. The unthreaded flange means the mating plug should also have an unthreaded shell or use a different retention method.
