15-Position D-Sub Receptacle with Board Locks and Screwlocks

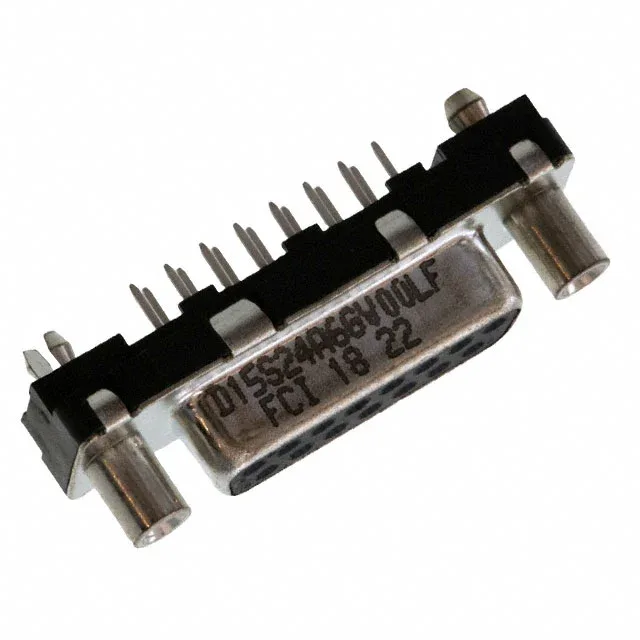

The Amphenol FCI D15S24A6GV00LF is a 15-position, 2-row D-sub receptacle from the Delta D series, designed for signal-level interconnects in equipment where a reliable, shielded connection is needed. The mating-side female screwlocks (4-40) let you torque the pair together, so vibration doesn't work the contacts loose in an industrial cabinet or a rack-mounted chassis.
Flange Options and Peer Comparison
The D15S24A6GV00LF comes with female screwlocks on the mating side (4-40 threads), which means the screwlocks are captive in the receptacle and engage with the male plug's threaded inserts. The close peer D15S24A6GX00LF is identical in every other spec — same 15 positions, same 30.0 µin gold, same board locks — but its flange feature is listed as housing/shell (4-40), which typically means the screwlocks are mounted in the plug or the receptacle shell itself, changing how the pair is assembled. Pick the flange style that matches your mating half's hardware.
