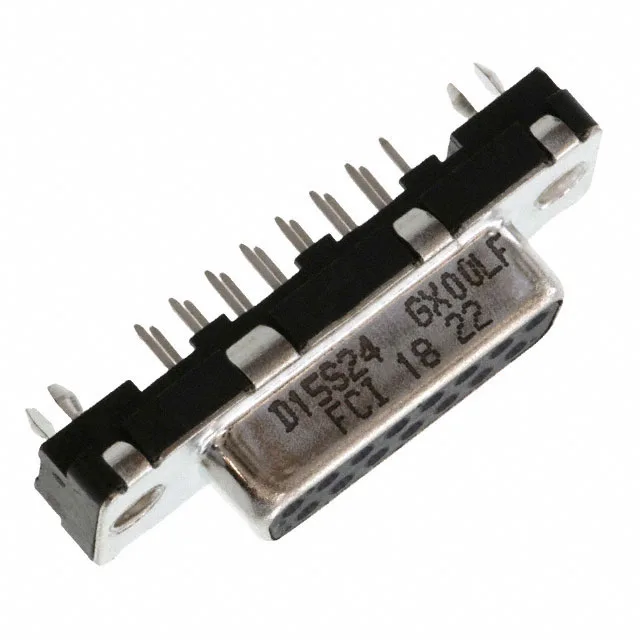

D15S24A6GX00LF — Amphenol product photo
Amphenol

Amphenol D15S24A6GX00LF D-Sub Receptacle, 15 Pos, 5A

MPND15S24A6GX00LF
Active

Amphenol Delta D series D-Sub receptacle, 15 positions, 2 rows, female sockets, 5A per contact, 300V, through-hole solder, board lock, gold plating 30.0µin, steel shell tin-nickel plated.

$3.4900Ref. price · indicative, final on quote
D15S24A6GX00LF datasheet
StockIn Stock (47)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D15S24A6GX00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

15-Position D-Sub Receptacle, Vertical Solder, Board Lock

The Amphenol D15S24A6GX00LF is a 15-position D-Sub receptacle from the Delta D series, fitted with female sockets in a 2-row DA-15 (A) shell layout. Rated 5A per contact with 300V max, the limiting factor for current is the pin density in the standard DA shell, not the contact itself.

Shell, Flange, and Panel Fit

The steel shell carries a tin-nickel plated finish and housing/shell flange with 4-40 threaded inserts — the standard D-Sub panel-mount pattern. Mates with any standard DB15 male plug or cable assembly that uses the same 4-40 jackscrew spacing.

Frequently asked questions

Is D15S24A6GX00LF compatible with standard DB15 cables?

Yes.

Where can I buy D15S24A6GX00LF?

Submit an RFQ for the quantity you need.
