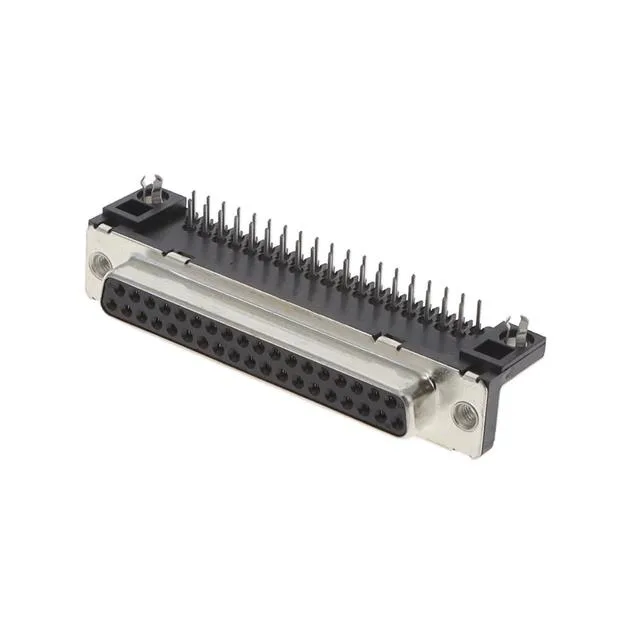

D37S13A4GL00LF — Amphenol product photo
Amphenol

Amphenol FCI D37S13A4GL00LF Delta D

MPND37S13A4GL00LF
Active

Amphenol FCI Delta D series D-Sub receptacle, 37 positions, 2 rows, right-angle through-hole, solder termination, gold flash contacts, rated 5A per contact at 300V, steel shell with tin-nickel plating, board locks and mounting brackets, UL94 V-0.

$3.6500Ref. price · indicative, final on quote
D37S13A4GL00LF datasheet
StockIn Stock (38)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D37S13A4GL00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
FeaturesBoard Lock, Mounting Brackets
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (M3)
Rows2
Backset spacing0.409\" (10.40mm)
Positions37
Contact finish thicknessFlash

Product details

37-Position D-Sub Receptacle for Board-Edge I/O

The Amphenol FCI D37S13A4GL00LF is a 37-position D-Sub receptacle from the Delta D series, configured as a right-angle through-hole mount with solder termination. The 37 circuits are arranged in two rows, matching the standard DC shell size layout (4, DC, C).

This receptacle includes board locks and mounting brackets, both listed as standard features. The mounting brackets accept M3 hardware through the housing/shell flange, providing additional mechanical tie-down in high-vibration environments. The steel shell with tin-nickel plating handles EMI shielding and resists corrosion in humid or industrial cabinet conditions.

Frequently asked questions

What is the difference between D37S13A4GL00LF and D37S13A4GL00?

The 'LF' suffix on D37S13A4GL00LF designates lead-free / RoHS-compliant termination finish. Both share the same 37-position Delta D receptacle body, right-angle orientation, gold flash contacts, and board lock features. The LF variant is the current RoHS-compliant production version.
