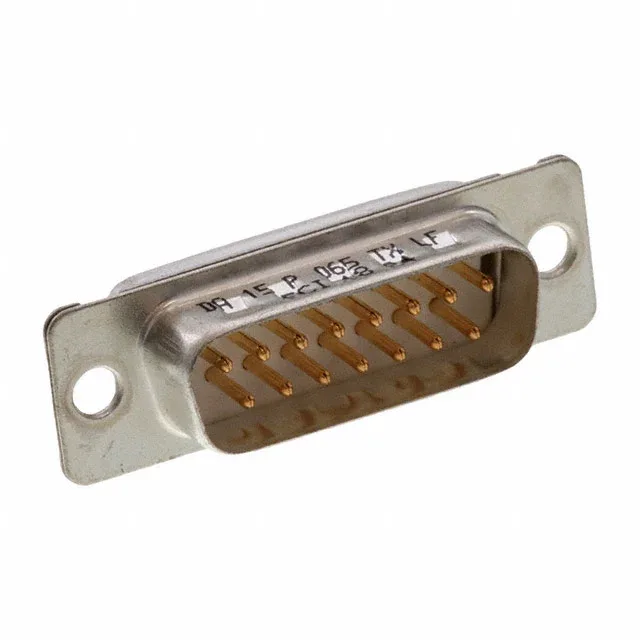

DA15P065TXLF — Amphenol product photo
Amphenol

Amphenol FCI DA15P065TXLF D-Sub Plug, 15 Pos, Solder Cup

MPNDA15P065TXLF
Active

Amphenol FCI D-sub plug, DA15P065TXLF, 15 positions, 2 rows, solder cup termination, 5A per contact, 300V, 30.0µin gold GXT™ contact finish, free hanging in-line mount, tin-plated steel shell with grounding indents.

$2.2700Ref. price · indicative, final on quote
DA15P065TXLF datasheet
StockIn Stock (50)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DA15P065TXLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 125°C
ColorNatural
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGrounding Indents
TerminationSolder Cup
Contact finishGold, GXT™
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

Wiring a 15-Pin D-Sub Plug for Signal Duty

The Amphenol FCI DA15P065TXLF is a standard DA-size D-sub plug with 15 male pins arranged in two rows, terminated via solder cups — no crimp tooling needed, just a clean iron and heat-shrink. This plug is the male half for any standard 15-position D-sub receptacle with the DA shell layout.

DA15P065TXLF vs. the Flash-Gold and Shielded Siblings

If you are sourcing the DA15P065TXLF and see DA15P064TXLF or DA15P065HTXLF on the same BOM, the difference is in the plating and shielding. The DA15P064TXLF carries a flash gold finish — thinner, lower mating cycle life, fine for a one-time install or low-insertion-count equipment. The DA15P065HTXLF adds a shielded variant (the 'H' denotes the shielded shell) while keeping the same 30.0µin gold GXT™ contacts. For a harness that runs near a motor drive or switching supply, the shielded version saves you an external ferrite. For a clean signal path in a dry cabinet, the standard DA15P065TXLF with grounding indents is sufficient.

Frequently asked questions

Where can I buy DA15P065TXLF and how do I get a price?

Submit a request for quote (RFQ) for current pricing and availability — confirmed at quote time.

Is DA15P065TXLF compatible with standard D-sub hoods?

The unthreaded flange requires the mating half or hood to provide the threaded insert for jack-screws.

What is the difference between DA15P065TXLF and DA15P064TXLF?

The thicker plating on the DA15P065TXLF supports more mating cycles and better corrosion resistance. Both are 15-position, solder-cup D-sub plugs with grounding indents.

Is DA15P065TXLF RoHS compliant?

Yes, the DA15P065TXLF is listed as RoHS compliant.
