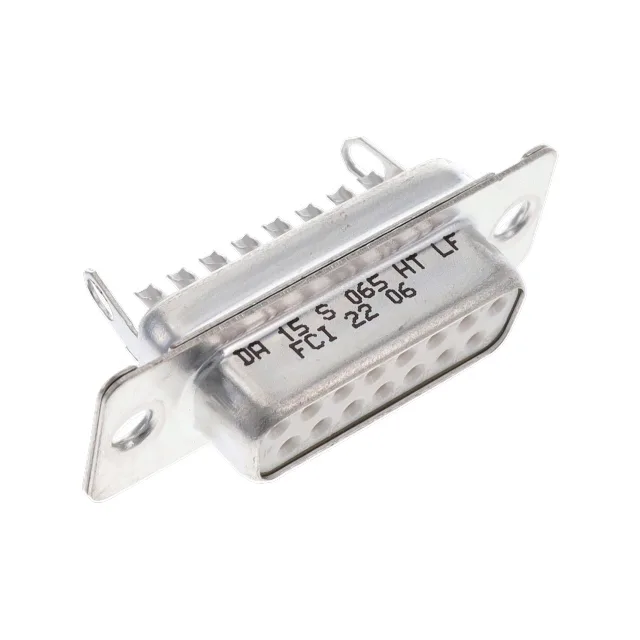

DA15S065HTLF — Amphenol product photo
Amphenol

Amphenol FCI DA15S065HTLF D-Sub Receptacle, 15-Pos

MPNDA15S065HTLF
Active

The Amphenol FCI DA15S065HTLF is a 15-position D-sub receptacle with female sockets, part of the standard D-subminiature family. It uses a solder cup termination — each wire is hand-soldered into the cup, not crimped or IDC-terminated — which makes it a natural fit for prototype builds, repair harnesses, or low-volume production where a crimp tool investment doesn't pencil out.

$2.5800Ref. price · indicative, final on quote
DA15S065HTLF datasheet
StockIn Stock (30)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DA15S065HTLF Technical Specifications
ParameterValue
SeriesD
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 125°C
ColorNatural
Contact materialCopper Alloy
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesShielded
TerminationSolder Cup
Contact finishGold, GXT™
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

The Amphenol FCI DA15S065HTLF is a 15-position D-sub receptacle with female sockets, part of the standard D-subminiature family. It uses a solder cup termination — each wire is hand-soldered into the cup, not crimped or IDC-terminated — which makes it a natural fit for prototype builds, repair harnesses, or low-volume production where a crimp tool investment doesn't pencil out.

Sizing the Wire and the Connection

The unthreaded flange (housing/shell style) means the mating plug uses a slide-lock or screw-lock hardware set that the assembler provides separately — the shell itself has no threaded inserts.

Frequently asked questions

What is the DA15S065HTLF equivalent or cross-reference?

The closest functional equivalent is the DA15S065TLF — same 15 positions, solder cup termination, 30.0 µ" gold GXT plating, and shielded shell. The only difference is the suffix, which may reflect a packaging or plating batch code. For a lower-cost option with reduced mating cycle life, the DA15S064TLF uses flash gold instead of 30.0 µ" gold.
