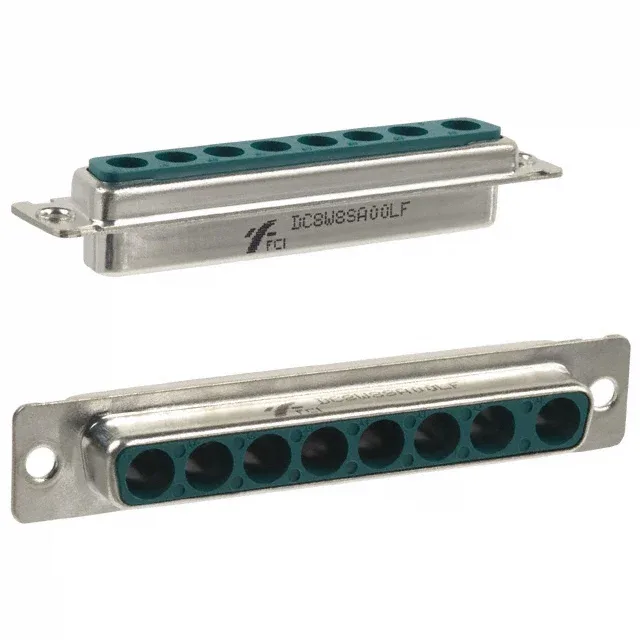

DC8W8SA00LF — Amphenol product photo
Amphenol

Amphenol FCI DC8W8SA00LF DW D-Sub Combo Receptacle Housing

MPNDC8W8SA00LF
Active

Amphenol FCI DW series D-Sub combo receptacle housing, DC8W8SA00LF, 8 power positions, 1 row, free hanging in-line mounting, steel tin-plated shell, thermoplastic dielectric, -55°C to 125°C operating range.

$2.7900Ref. price · indicative, final on quote
DC8W8SA00LF datasheet
StockIn Stock (31)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DC8W8SA00LF Technical Specifications
ParameterValue
SeriesDW
GenderPower
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle for Female Contacts
Shell size, connector layout4 (DC, C) - 8W8
Operating temperature-55°C ~ 125°C
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageTray
Flange featureHousing/Shell (Unthreaded)
Rows1
Positions8 (Power)

Product details

What This Connector Is — 8-Power D-Sub Combo Receptacle Housing

The Amphenol FCI DC8W8SA00LF is a D-Sub combo receptacle housing from the DW series, designed to accept female power contacts. It carries 8 power positions in a single row, arranged in the 4 (DC, C) - 8W8 shell layout — the standard footprint for an 8W8 combo D-sub. The housing is free-hanging (in-line), with an unthreaded flange for panel mounting.

A critical note on the DC8W8SA00LF: contacts are not included. The housing accepts power contacts rated for the application; the exact terminal part number depends on wire gauge and current requirements. Factor the terminal order into your BOM alongside the housing.

Frequently asked questions

What contacts fit DC8W8SA00LF?

The DC8W8SA00LF accepts female power crimp terminals for the 8W8 combo D-sub layout. Contacts are not included with the housing — order the appropriate power contact separately based on your wire gauge and current requirements.

Is DC8W8SA00LF RoHS compliant?

Yes, the DC8W8SA00LF is RoHS compliant, meeting the EU directive for restricted hazardous substances in electronic equipment.

What is the difference between DC8W8SA00LF and DC8W8PA00LF?

The DC8W8SA00LF is a receptacle housing for female contacts; the DC8W8PA00LF is a plug housing for male contacts. Both share the same 8 power positions, shell size, and free-hanging mounting. The plug (PA00LF) includes grounding indents in the shell for shield drain, which the receptacle lacks.
