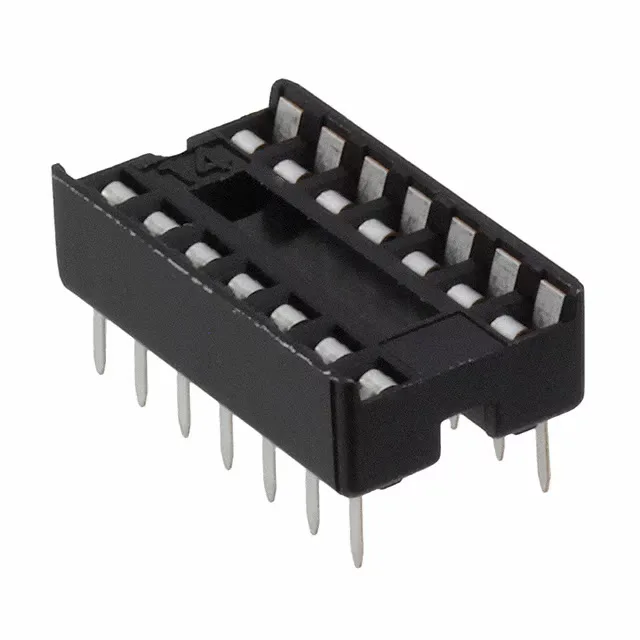

DILB14P-223TLF — Amphenol product photo
Amphenol

DILB14P-223TLF DIP Socket 14-Pin Tin Amphenol ICC (FCI)

MPNDILB14P-223TLF
Active

Amphenol ICC (FCI) DILB14P-223TLF, 14-pin DIP socket, 0.3" (7.62mm) row spacing, 0.100" (2.54mm) pitch, tin-plated contacts, 1 A rating, UL94 V-0 nylon housing, through-hole solder termination.

$0.5400Ref. price · indicative, final on quote
DILB14P-223TLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DILB14P-223TLF Technical Specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
Mounting typeThrough Hole
Current rating1 A
Operating temperature-55°C~105°C
Housing materialPolyamide (PA), Nylon
Contact material - postCopper Alloy
Contact material - matingCopper Alloy
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance30mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.124\" (3.15mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)
Number of positions or pins14 (2 x 7)

Product details

14-Pin DIP Socket for Standard IC Footprints

The DILB14P-223TLF: The open-frame design allows airflow around the IC body, which helps thermal management in dense boards. Rated 1 A per pin with tin-on-tin contact interface.

Supplied in tube packaging.

Frequently asked questions

Is DILB14P-223TLF RoHS compliant?

Yes, the manufacturer lists it as RoHS compliant.
