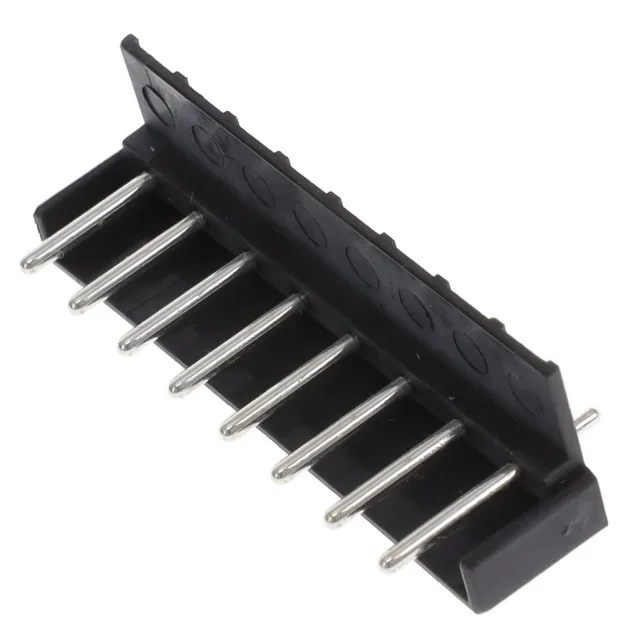

EX0800010000G — Amphenol product photo
Amphenol

EX0800010000G Header, 8 Pos, 5.00mm, Tin, Active

MPNEX0800010000G
Active

EX series Header, Male Pins, Partial Shroud, order code EX0800010000G, 8 positions, single level, 0.197" (5.00mm) pitch, 10 A, 300 V, tin-plated brass contacts, through-hole vertical, solder termination.

$1.4500Ref. price · indicative, final on quote
EX0800010000G datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

EX0800010000G Technical Specifications
ParameterValue
TypeHeader, Male Pins, Partial Shroud
SeriesEX
Mounting typeThrough Hole
Voltage - UL300 V
Current - UL10 A
Operating temperature-40°C ~ 115°C
ColorBlack
Contact materialBrass
Housing materialThermoplastic
Insulation height0.374\" (9.50mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.132\" (3.35mm)
Positions8
Contact mating finishTin

Product details

8-position 5.00 mm pitch power header

The EX0800010000G is the 8-circuit member of the EX series of shrouded pin headers, specified for 10 A per contact at 300 V. Tin-plated brass contacts mate with standard 5.00 mm pitch receptacle housings; the through-hole vertical orientation suits wire-to-board power distribution on a single PCB level.

Pitch, temperature, and flammability

The 0.197" (5.00 mm) pitch and single-level layout keep the board footprint compact for 8 circuits. The thermoplastic housing carries a UL94 V-0 rating and supports an operating range of -40°C to 115°C.

Frequently asked questions

What is the connector type and key specification for EX0800010000G?

It is a Header, Male Pins, Partial Shroud with 8 positions, single level, 0.197" (5.00mm) pitch, rated 10 A at 300 V. Tin-plated brass contacts, through-hole vertical mounting, solder termination. Housing is black thermoplastic rated UL94 V-0.
