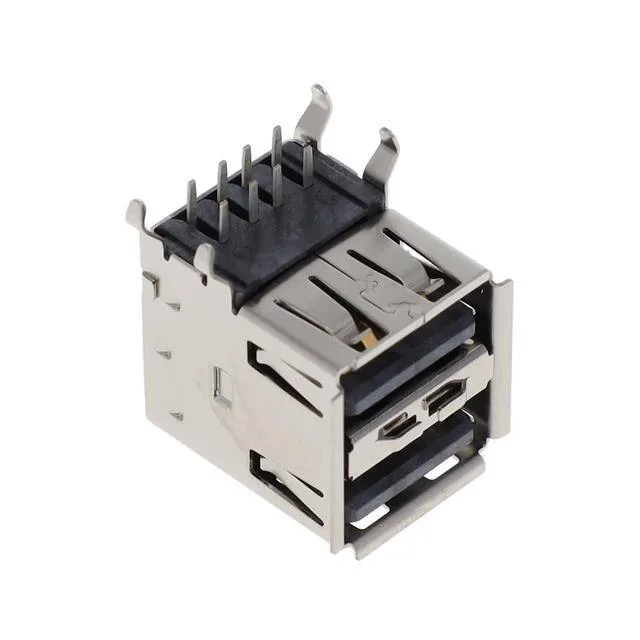

Amphenol ICC (Commercial Products) GSB1 USB-A (USB TYPE-A) stacked receptacle, order code GSB12221LFRSPEU, 8 contacts, 2 ports, USB 2.0, through-hole right-angle, shielded, gold contact finish, 1.5 A, 30 VDC, solder termination, tray.
| Parameter | Value |
|---|---|
| Series | GSB1 |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A), Stacked |
| Voltage - rated | 30VDC |
| Current rating | 1.5A |
| Positions | 8 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C~85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 2 |
The GSB12221LFRSPEU is a stacked USB-A receptacle in Amphenol ICC's GSB1 series, offering two USB 2.0 ports in a single through-hole right-angle package. Each of the 8 contacts is gold-plated, rated 1.5 A at 30 VDC, and the shielded copper-alloy shell with UL94 V-0 housing supports operation from -40°C to 85°C.
It is a USB-A receptacle with two stacked ports, totaling 8 contacts.
