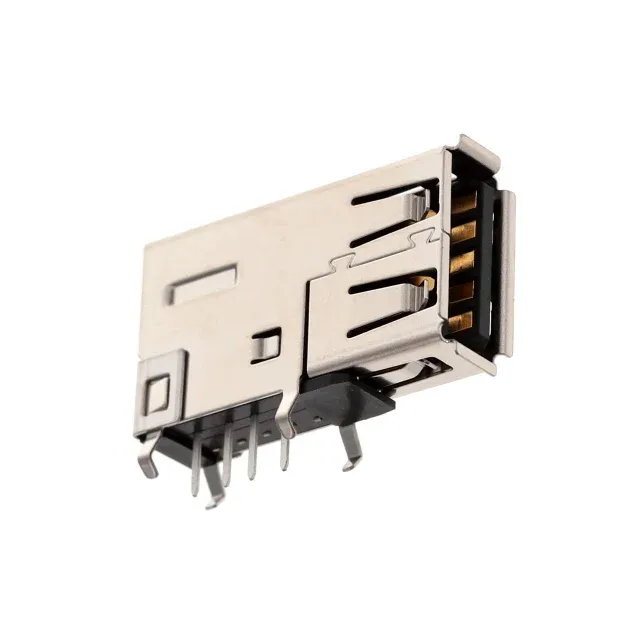

Amphenol ICC (Commercial Products) GSB1 USB-A receptacle, order code GSB19121TP2EU, 4 contacts, single port, 1.5 A, 30 VDC, through-hole right-angle, gold-plated contacts, shielded, USB 2.0, solder termination.
| Parameter | Value |
|---|---|
| Series | GSB1 |
| Mounting type | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VDC |
| Current rating | 1.5A |
| Positions | 4 |
| Mounting feature | Vertical |
| Operating temperature | -40°C~85°C |
| Insulation color | Black |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The GSB19121TP2EU is the 4-contact USB-A receptacle in Amphenol ICC's GSB1 series, shielded, with a through-hole right-angle mounting. Gold-plated mating contacts are rated for 1500 mating cycles — the gold layer resists fretting corrosion over repeated connect-disconnect cycles in field-service or test-equipment use.
Rated for 1500 mating cycles. The gold-plated contacts maintain low contact resistance through repeated connect-disconnect cycles, making the connector suited for equipment that sees periodic cable swaps or test-port access.
The part is ROHS3 compliant.
