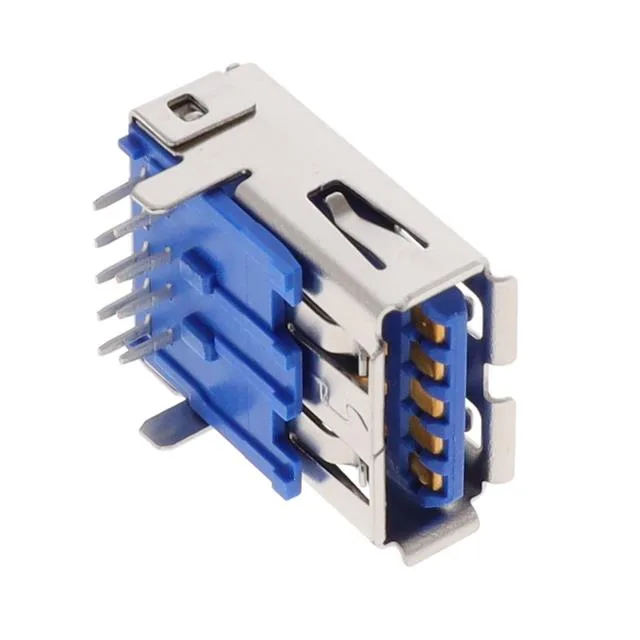

Amphenol ICC GSB3 USB-A receptacle, order code GSB31113995H4HR, 9 contacts, USB 3.2 Gen 1, 30VAC, gold-plated contacts, shielded, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | GSB3 |
| Mounting type | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Positions | 9 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C ~ 85°C |
| Insulation color | Blue |
| Shell (Shielding material) | Steel |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Number of ports | 1 |
The GSB31113995H4HR is a 9-contact USB-A receptacle from Amphenol ICC's GSB3 series, supporting USB 3.2 Gen 1 (5 Gbps) signalling over a shielded, through-hole right-angle package. Rated 30VAC with gold-plated contacts, the receptacle is specified for 1500 mating cycles and operates from -55°C to 85°C. The UL94 V-0 rated housing and steel shell provide mechanical and flame-rated integrity.
