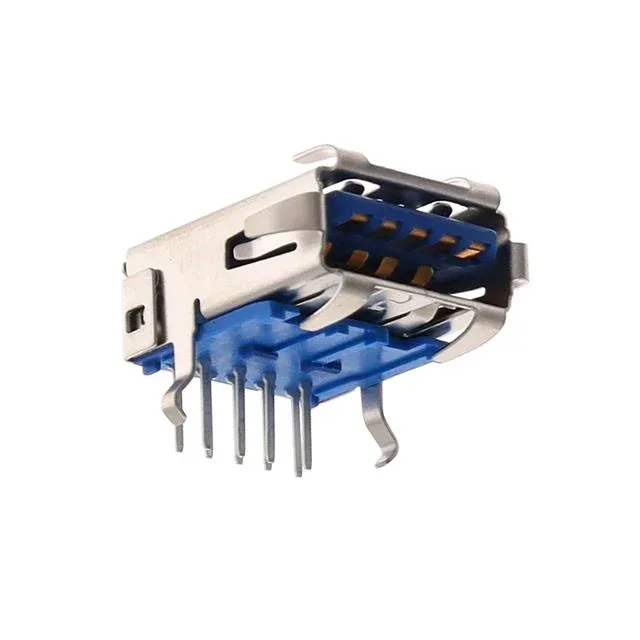

Amphenol ICC GSB3 USB-A receptacle, order code GSB311J35F2H4EU, 9 contacts, USB 3.2 Gen 1 (Superspeed), shielded, gold-plated contacts, through-hole right-angle, solder termination, 30VAC rating.
| Parameter | Value |
|---|---|
| Series | GSB3 |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Positions | 9 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C ~ 85°C |
| Insulation color | Blue |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Number of ports | 1 |
The GSB311J35F2H4EU is a 9-contact USB-A receptacle from Amphenol ICC's GSB3 series, supporting USB 3.2 Gen 1 (Superspeed) data rates. Gold-plated contacts, a shielded steel/stainless shell, and a through-hole right-angle mounting orientation suit board-edge designs where signal integrity and repeated mating are priorities.
