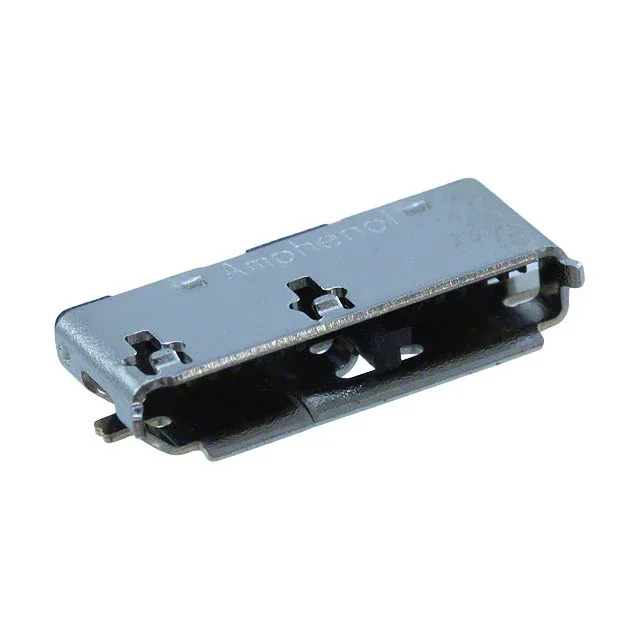

Amphenol ICC (Commercial Products) GSB3 USB - micro B receptacle, order code GSB343133HR, 10 contacts, USB 3.2 Gen 1 (Superspeed), 30VAC, 0.25A/1.8A, gold-plated contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | GSB3 |
| Mounting type | Surface Mount, Right Angle |
| Connector type | USB - micro B |
| Voltage - rated | 30VAC |
| Current rating | 0.25A, 1.8A |
| Positions | 10 |
| Mounting feature | Horizontal |
| Operating temperature | -20°C~60°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Number of ports | 1 |
The GSB343133HR is a 10-contact USB micro-B receptacle in Amphenol ICC's GSB3 series, supporting USB 3.2 Gen 1 (5 Gbps) data rates. Rated 30VAC with a dual current rating of 0.25A and 1.8A, the gold-plated contacts and steel/stainless shell provide corrosion resistance and EMI shielding for the Superspeed signal pair.
The GSB343133HR is RoHS compliant per the manufacturer's declaration.
