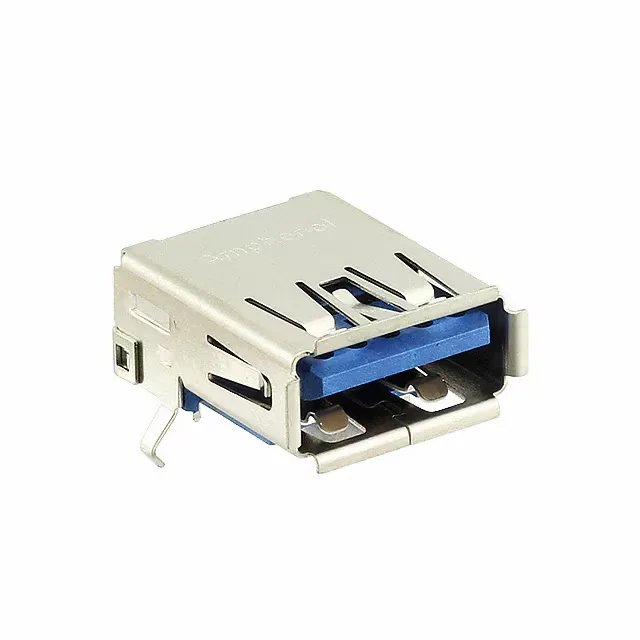

Amphenol ICC (Commercial Products) GSB4 USB-A (USB TYPE-A) receptacle, order code GSB4111312HR, 9 contacts, USB 3.2 Gen 2, gold contact finish, shielded, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | GSB4 |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Positions | 9 |
| Mounting feature | Horizontal |
| Insulation color | Blue |
| Shell (Shielding material) | Copper Alloy |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The GSB4111312HR is a 9-contact USB-A receptacle from the GSB4 series, rated for USB 3.2 Gen 2 signalling with gold-plated contacts and a shielded shell. Rated for 5000 mating cycles, the gold contact finish supports repeated connect-disconnect cycles in field-service or test-bench use without contact fretting.
