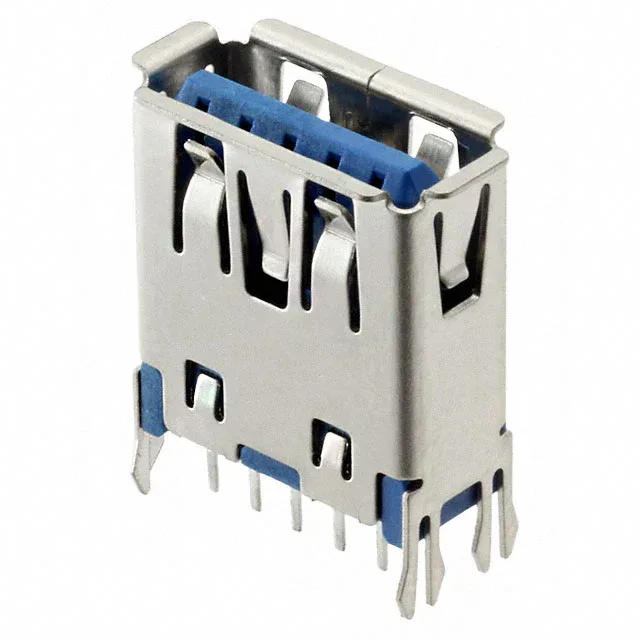

Amphenol ICC (Commercial Products) GSB4 USB-A receptacle, order code GSB412137CHR, 9 contacts, USB 3.2 Gen 2, gold contact finish, shielded, through-hole vertical mount, solder termination.
| Parameter | Value |
|---|---|
| Series | GSB4 |
| Mounting type | Through Hole |
| Connector type | USB-A (USB TYPE-A) |
| Positions | 9 |
| Mounting feature | Vertical |
| Insulation color | Blue |
| Shell (Shielding material) | Steel (SK7) |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The GSB412137CHR is the 9-contact USB-A receptacle in Amphenol ICC's GSB4 series, supporting USB 3.2 Gen 2 (10 Gbps) data rates. Gold-plated contacts, a shielded steel shell, and a board lock for through-hole solder retention to the PCB.
Rated for 5000 mating cycles — the gold contact finish handles the wear without exposing the base metal, keeping contact resistance stable over repeated insertions.
