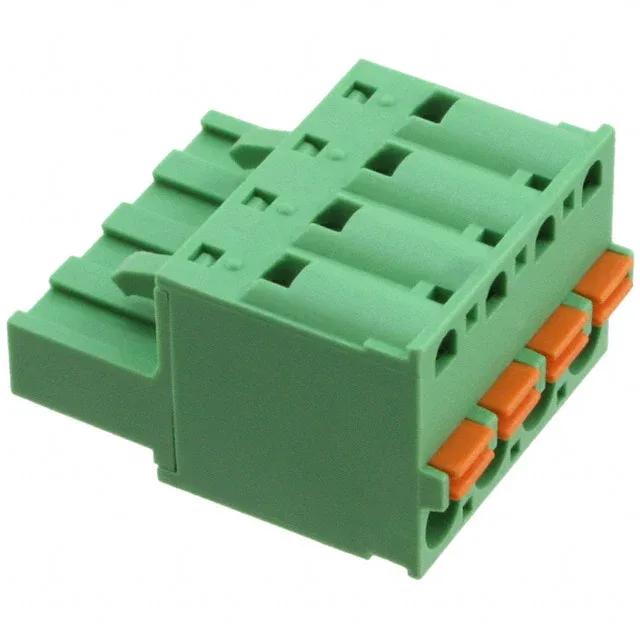

HW0450500000G — Amphenol product photo
Amphenol

HW0450500000G Amphenol Anytek 35-508 Plug, 4-Pos 5.08mm

MPNHW0450500000G
Active

Amphenol Anytek 35-508 plug, order code HW0450500000G, 4 positions, single level, 0.200" (5.08 mm) pitch, 10 A, 300 V, tin-plated mating contacts, free hanging, push-in spring termination, green housing.

$1.7800Ref. price · indicative, final on quote
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

HW0450500000G Technical Specifications
ParameterValue
TypePlug, Female Sockets
Series35-508
Mounting typeFree Hanging (In-Line)
Voltage - UL300 V
Current - UL10 A
Plug wire entry180°
Wire strip length8-9mm
Wire gauge or range - AWG12-26 AWG
Wire gauge or range - mm22.5mm²
Operating temperature-40°C~115°C
ColorGreen
Contact materialCopper Alloy
Housing materialThermoplastic Resin
Insulation height0.591\" (15.00mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesRetention Latches (Non-Wire Side)
Number of levels1
Termination styleScrewless - Leg Spring, Push-In Spring
Positions4
Positions per level4
Contact mating finishTin

Product details

4-position plug, 5.08 mm pitch

The HW0450500000G is the 4-circuit member of Amphenol Anytek's 35-508 plug line, a single-level female plug with 0.200" (5.08 mm) pitch. Rated 10 A at 300 V with tin-plated mating contacts, the plug suits power distribution and signal wiring in industrial control panels.

Push-in spring termination, 12-26 AWG

Termination is screwless push-in spring — leg spring, push-in spring style — accepting 12-26 AWG or 2.5 mm² wire with an 8-9 mm strip length. The plug mounts free hanging (in-line) with 180° wire entry and includes retention latches on the non-wire side.

Frequently asked questions

What compliance documentation does Amphenol Anytek provide for HW0450500000G?

The HW0450500000G is RoHS3 compliant. The housing material is rated UL94 V-0.

What is the termination style and wire range for HW0450500000G?

Termination is screwless push-in spring (leg spring, push-in spring) accepting 12-26 AWG or 2.5 mm² wire with an 8-9 mm strip length.
