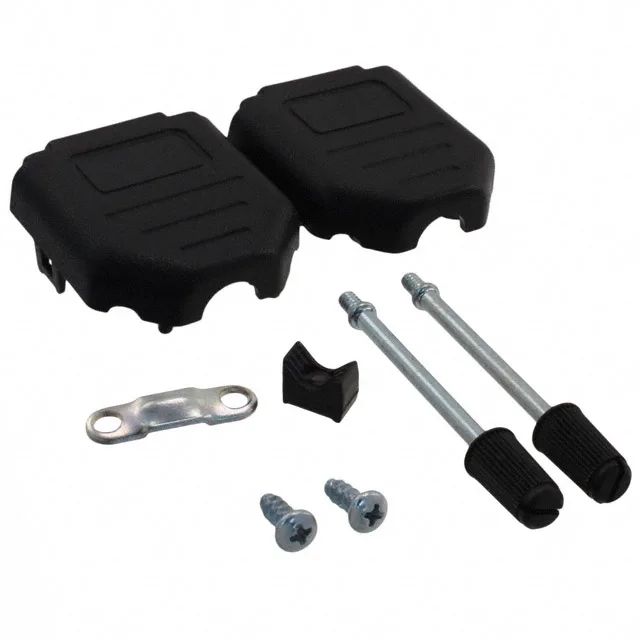

L17DPPK09JS — Amphenol product photo
Amphenol

L17DPPK09JS D-sub Backshell, 9-Pos, 180°, Black

MPNL17DPPK09JS
Active

Amphenol L17 series hinged backshell, 9 positions, 180° cable exit, black thermoplastic, includes 4-40 mating screws and cable clamp, unshielded, bag packaged.

$4.5900Ref. price · indicative, final on quote
StockIn Stock (15)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

L17DPPK09JS Technical Specifications
ParameterValue
SeriesL17
Cable typeRound
Accessory typeHinged Backshell
Cable exit180°
ColorBlack
MaterialThermoplastic
Primary materialPlastic
PackageBag
FeaturesMating Screws 4-40
HardwareAssembly Hardware, Cable Clamp
ShieldingUnshielded
Positions9
Compatible D-Sub size9pos and HD15pos
Compatible shell sizeE

Product details

Hinged Backshell for 9-Position D-sub Connectors

The Amphenol L17DPPK09JS is a hinged backshell designed for standard 9-position D-sub connectors, with a 180° cable exit that routes the cable straight out the back of the connector. It is part of the L17 series and comes in a black thermoplastic housing. The backshell includes the 4-40 mating screws and a cable clamp as part of the assembly hardware, so no additional fasteners are needed to complete the cable-to-connector termination. This backshell is compatible with both standard 9-position and high-density 15-position D-sub shell sizes (E shell size), making it a versatile choice for cable assemblies where the same backshell may be used across different D-sub configurations.

What's in the Bag

The L17DPPK09JS ships in a bag and includes the hinged backshell body, the 4-40 mating screws for securing to the D-sub connector, and the cable clamp hardware for strain relief on round cable. The assembly hardware is included — no separate purchase needed for the screws or clamp.

Frequently asked questions

Where can I buy the L17DPPK09JS backshell?

The L17DPPK09JS is available to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.

Does the L17DPPK09JS include the mating screws?

Yes, the L17DPPK09JS includes 4-40 mating screws as part of the assembly hardware, along with a cable clamp. No additional fasteners are required.

Is the L17DPPK09JS compatible with standard D-sub connectors?

Yes, this hinged backshell is designed for standard 9-position D-sub connectors and also fits high-density 15-position D-sub connectors using the same E shell size.
