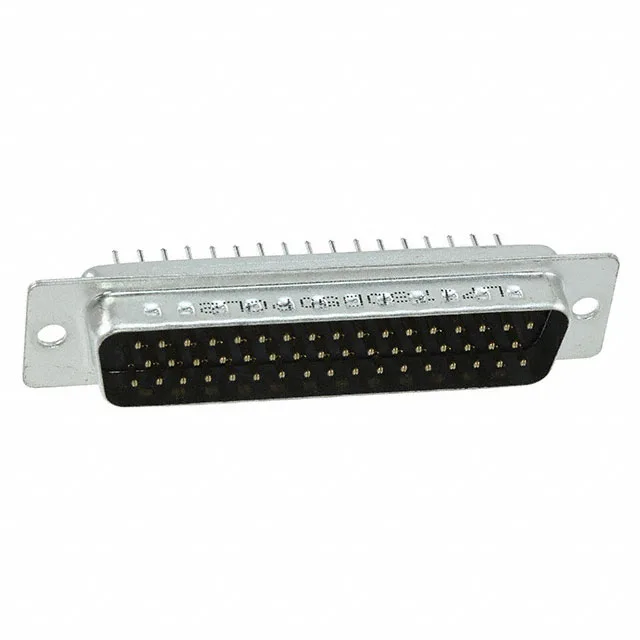

L717SDD50POL2 — Amphenol product photo
Amphenol

Amphenol L717SDD50POL2 D-Sub Plug, 50 Pos, 3A, Gold Flash

MPNL717SDD50POL2
Active

Amphenol SD series D-Sub plug, 50 positions, 3 rows, through hole solder, gold flash contacts, 3A, 250V, steel shell with tin plating, UL94 V-0.

$4.8700Ref. price · indicative, final on quote
L717SDD50POL2 datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

L717SDD50POL2 Technical Specifications
ParameterValue
SeriesSD
GenderSignal
Mounting typeThrough Hole
Connector typePlug, Male Pins
Voltage rating250V
Current rating3A
Contact formStamped
Shell size, connector layout5 (DD, D)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows3
Positions50
Contact finish thicknessFlash

Product details

The Amphenol L717SDD50POL2 is a 50-position D-Sub plug with male pins, part of the SD series. It uses the standard DD shell size (layout 5), which means it mates with any standard 50-position D-Sub receptacle — no custom footprint to chase. The 3-row arrangement keeps the pin density manageable for hand-soldering or wave-solder assembly. Rated 3 A per contact at 250 V, with an operating range of -55°C to 125°C and a UL94 V-0 housing.

Mates with any standard 50-position D-Sub receptacle (female socket) of the same shell size DD. The unthreaded housing/shell flange accepts standard screw-lock hardware (4-40 or M3) for panel-mount retention — the flange is not pre-tapped, so use self-clinching nuts or a through-hole panel. Through-hole solder termination — the pins are stamped brass with gold flash, designed for wave or hand solder. The 3-row pin layout matches the standard DD footprint; no board redesign needed if you already have a 50-pin D-Sub pattern.

Frequently asked questions

Where can I buy L717SDD50POL2?

Submit a request for current pricing and availability — confirmed at quote time.

What is the pinout of L717SDD50POL2?

Standard D-Sub DD shell size pinout: 50 pins arranged in 3 rows (17-16-17). Pin 1 is at the top left when viewing the plug face with the D-shell wide side up. Consult the Amphenol SD series drawing for the full numbering map.
