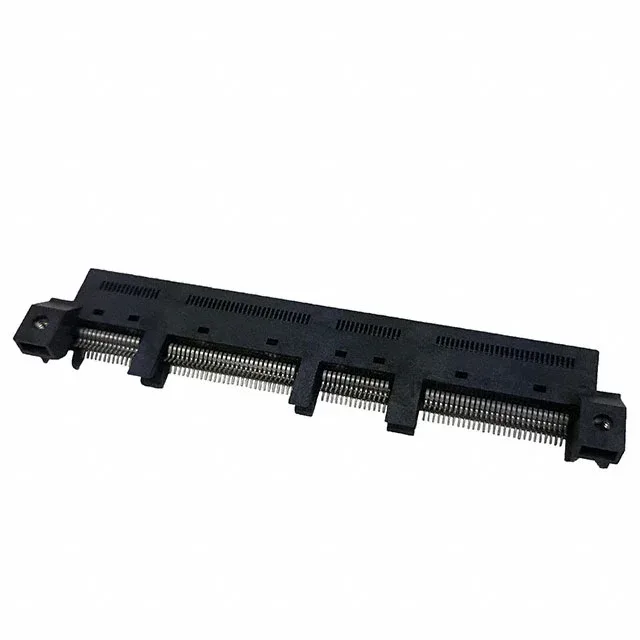

Amphenol Mini Cool Edge 0.60mm ME10168434A0601, 168-Position

MPNME10168434A0601
Active

Amphenol Mini Cool Edge 0.60mm, female edge connector, 168 positions, dual row, 0.024" (0.60mm) pitch, straddle mount, solder termination, gold 30.0µin contacts, black thermoplastic, tray.

$8.7700Ref. price · indicative, final on quote
ME10168434A0601 datasheet
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

ME10168434A0601 Technical Specifications
ParameterValue
SeriesMini Cool Edge 0.60mm
Card typeNon Specified - Dual Edge
Mounting typeBoard Edge, Straddle Mount
Operating temperature-40°C ~ 85°C
ColorBlack
Contact materialCopper Alloy
Material - insulationThermoplastic
Pitch0.024\" (0.60mm)
GenderFemale
PackageTray
Read outDual
TerminationSolder
Card thickness0.062\" (1.57mm)
Contact finishGold
Flange featureStraddle Mount Opening, Unthreaded, 0.087\" (2.20mm)
Rows2
Positions168
Contact finish thickness30.0µin (0.76µm)
Number of positions (Bay, row)14; 28; 14; 28

Product details

The Amphenol ME10168434A0601 is a 168-position female edge connector from the Mini Cool Edge 0.60mm series, designed for board-edge, straddle-mount applications.

Mating and Termination — Straddle Mount Solders Directly to the Board Edge

Termination is solder-only — no press-fit or crimp option. The connector straddles the PCB edge, with the solder tails on both sides of the board. The mating half is the edge card itself, which must have the corresponding gold-plated pads at 0.60 mm pitch. No separate housing or plug is needed; the card inserts into the dual-row slot and is retained by the contact normal force.

Frequently asked questions

What is the pitch and position count of ME10168434A0601?

The pitch is 0.024" (0.60 mm), and it has 168 positions arranged in a dual-row configuration.

Is ME10168434A0601 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the mating connector for ME10168434A0601?

The mating half is the edge card itself — a PCB with gold-plated edge pads at 0.60 mm pitch and 0.062" (1.57 mm) thickness. No separate plug or housing is required.
