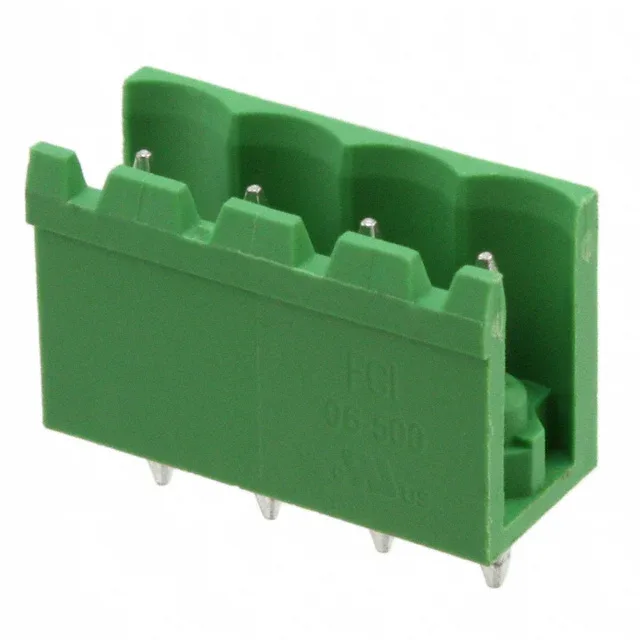

OQ0453500000G — Amphenol product photo
Amphenol

OQ0453500000G Amphenol Anytek 4-Pos 5.08mm Header

MPNOQ0453500000G
Active

Amphenol Anytek 06-508 header, order code OQ0453500000G, 4 positions, single level, 5.08 mm pitch, 12 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.

$0.8900Ref. price · indicative, final on quote
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

OQ0453500000G Technical Specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (2 Side)
Series06-508
Mounting typeThrough Hole
Voltage - UL300 V
Current - UL12 A
Operating temperature-40°C~115°C
ColorGreen
Contact materialCopper Alloy
Housing materialThermoplastic Resin
Insulation height0.472\" (12.00mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)
PackageBulk
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.157\" (4.00mm)
Positions4
Positions per level4
Contact mating finishTin

Product details

4-position vertical header, 5.08 mm pitch

The OQ0453500000G is the 4-circuit member of Amphenol Anytek's 06-508 shrouded header line, terminated through-hole with vertical orientation. Rated 12 A at 300 V with tin-plated mating contacts, the header carries UL94 V-0 thermoplastic housing and operates from -40°C to 115°C.

Single-level layout, 4 positions per level

The 06-508 series offers a single-level design with 4 positions per level — the pitch and footprint are shared across the series, so match the position count to circuit count.

Frequently asked questions

What compliance documentation does Amphenol Anytek provide for OQ0453500000G?

The OQ0453500000G is ROHS3 Compliant. The housing material is rated UL94 V-0.
