6-position shrouded header, 5.08 mm pitch

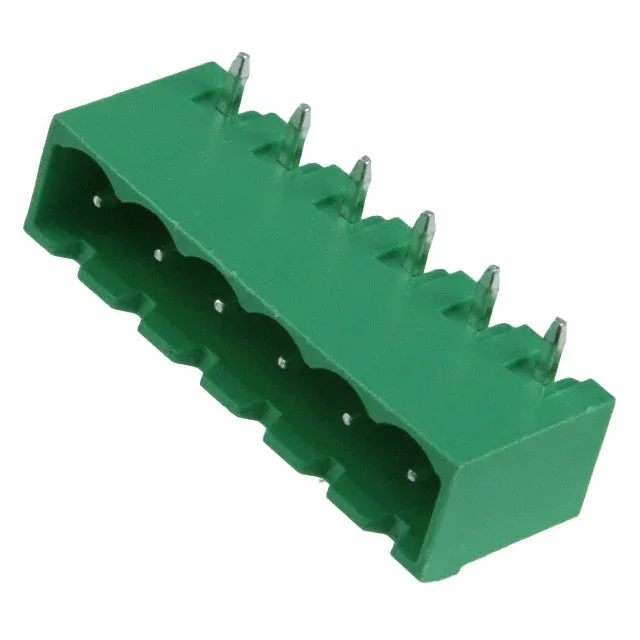

The OQ0654510000G is the 6-circuit member of Amphenol Anytek's 06-508 shrouded header line, a through-hole right-angle plug with tin-plated mating contacts. Rated 12 A at 300 V with a UL94 V-0 thermoplastic housing, the header operates from -40°C to 115°C.
Right-angle orientation and shrouding
The 90° right-angle orientation places the wire entry parallel to the PCB, useful for board-edge terminations where vertical clearance is limited. The 4-side shrouding protects the male pins from mechanical damage and guides the mating receptacle into alignment.
