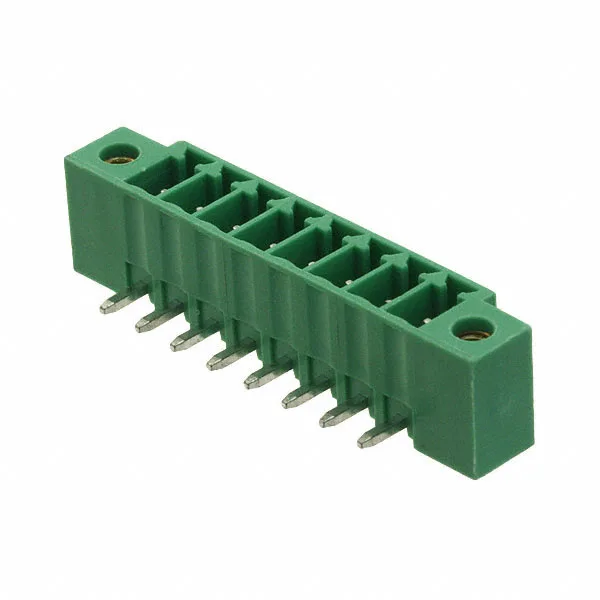

OQ0815510000G — Amphenol product photo
Amphenol

OQ0815510000G 8-Pos 3.50mm Terminal Block Header

MPNOQ0815510000G
Active

Terminal block header, 06-350 series, OQ0815510000G, 8 positions, single level, 0.138" (3.50mm) pitch, 10 A, 300 V, tin-plated male pins, through-hole right-angle, solder termination.

$1.5300Ref. price · indicative, final on quote
OQ0815510000G datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

OQ0815510000G Technical Specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
Series06-350
Mounting typeThrough Hole
Voltage - UL300 V
Current - UL10 A
Operating temperature-40°C ~ 115°C
ColorGreen
Contact materialCopper Alloy
Housing materialThermoplastic Resin
Insulation height0.283\" (7.19mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions8
Positions per level8
Contact mating finishTin

Product details

Termination and mounting

The OQ0815510000G is an 8-position, single-level terminal block header from the 06-350 series, with a 0.138" (3.50mm) pitch and right-angle through-hole solder termination. It carries tin-plated male pins rated 10 A at 300 V, with a UL94 V-0 thermoplastic housing in green and an operating range of -40°C to 115°C.

Board layout fit

The 0.138" (3.50mm) pitch and right-angle orientation suit compact board-edge layouts where the header sits parallel to the PCB. The 0.283" (7.19mm) insulation height and 0.138" (3.50mm) contact tail length define the keep-out zone and solder tail protrusion.
