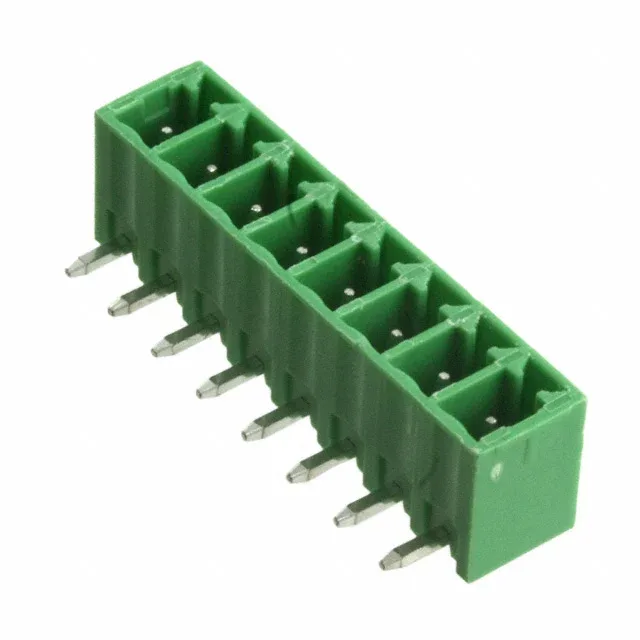

Terminal block header, male pins, shrouded (4 side), OQ0832510000G, 8 positions, 1 level, 3.81 mm pitch, 10 A, 300 V, tin mating finish, through-hole right-angle, solder termination, green housing.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | 06-381 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic Resin |
| Insulation height | 0.283\" (7.19mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
The OQ0832510000G is the 8-circuit member of the 06-381 terminal block header line, a shrouded (4-side) male pin header with a 3.81 mm pitch and a single-level layout. Rated 10 A at 300 V with tin-plated mating contacts, the header mounts through-hole at a 90° right angle and carries a UL94 V-0 thermoplastic housing rated for -40°C to 115°C.
No pin-compatible alternative is listed in the 06-381 series. The OQ0832510000G is the 8-position, 3.81 mm pitch, right-angle shrouded header in that family.
