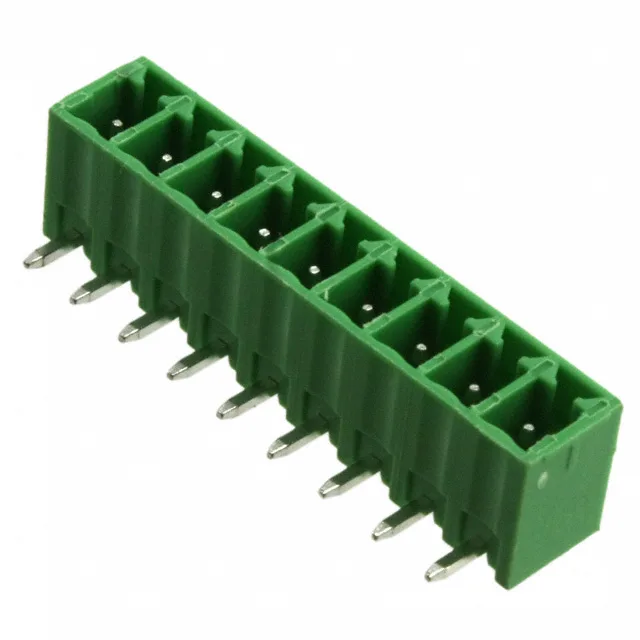

OQ0932510000G — Amphenol product photo
Amphenol

Amphenol Anytek OQ0932510000G Header, 9 Pos 3.81mm

MPNOQ0932510000G
Active

Amphenol Anytek 06-381 header, order code OQ0932510000G, 9 positions, single level, 0.150" (3.81mm) pitch, 10 A, 300 V, tin-plated mating finish, through-hole right-angle, solder termination.

$1.0200Ref. price · indicative, final on quote
OQ0932510000G datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

OQ0932510000G Technical Specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
Series06-381
Mounting typeThrough Hole
Voltage - UL300 V
Current - UL10 A
Operating temperature-40°C~115°C
ColorGreen
Contact materialCopper Alloy
Housing materialThermoplastic Resin
Insulation height0.283\" (7.19mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions9
Positions per level9
Contact mating finishTin

Product details

9-position shrouded header at 3.81 mm pitch

The OQ0932510000G is the 9-circuit member of Amphenol Anytek's 06-381 shrouded header line, rated 10 A at 300 V with a -40°C to 115°C operating range. Tin-plated mating contacts suit signal-level and moderate-power terminations where repeated mate cycles are infrequent.

Through-hole right-angle mounting

The header mounts through-hole with a 90° right-angle orientation, solder termination, and a 0.138" (3.50mm) contact tail length. The green thermoplastic housing carries a UL94 V-0 flammability rating and the 4-side shrouding protects pins during handling and mating.
