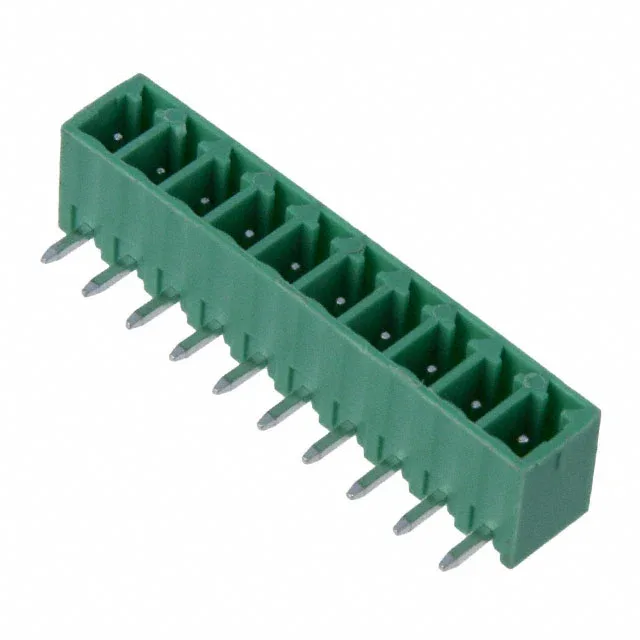

Amphenol Anytek 06-381 header, order code OQ1032510000G, 10 positions, single level, 0.150" (3.81mm) pitch, 10 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | 06-381 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic Resin |
| Insulation height | 0.283\" (7.19mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
The OQ1032510000G is the 10-circuit member of Amphenol Anytek's 06-381 shrouded header line, rated 10 A at 300 V with tin-plated mating contacts. The through-hole right-angle orientation suits board-edge wire-to-board connections; the UL94 V-0 thermoplastic housing and -40°C to 115°C operating range cover industrial cabinet environments.
