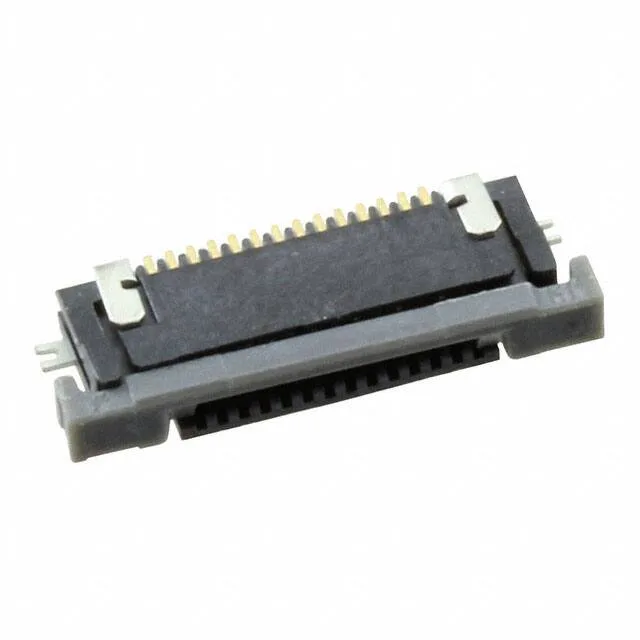

SFV14R-3STBE1HLF — Amphenol product photo
Amphenol

SFV14R-3STBE1HLF — Amphenol ICC FPC Connector, 0.50mm Pitch

MPNSFV14R-3STBE1HLF
Active

Amphenol ICC (FCI) SFV-R series, SFV14R-3STBE1HLF — 14-position, 0.50mm pitch FPC connector, bottom contact, ZIF slide lock, gold-plated phosphor bronze contacts, 0.5A per circuit, 50V, surface-mount right-angle, UL94 V-0 LCP housing.

$0.5800Ref. price · indicative, final on quote
SFV14R-3STBE1HLF datasheet
StockIn Stock (16)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFV14R-3STBE1HLF Technical Specifications
ParameterValue
SeriesSFV-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~105°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Height above board0.071\" (1.80mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions14

Product details

ZIF Slide Lock — How the Cable Stays Put

The SFV14R-3STBE1HLF: Zero Insertion Force (ZIF) actuation with a slide lock means the FPC is inserted without force on the pads, then the slide is moved to clamp the cable. This prevents pad damage during assembly and holds the cable against vibration without a secondary latch. The connector accepts FPC thicknesses of 0.30mm and 0.33mm — the contact beam wipes the pad on insertion, and the slide lock provides positive retention.

Mating Cycles and Contact Finish

Rated for 20 mating cycles — the gold contact finish on the phosphor bronze base maintains contact resistance over that life.

The SFV18R-4STBE1HLF has 18 positions with top-side contacts; the SFV30R-3STBE1HLF has 30 positions with bottom contacts like this part. If the BOM calls for more I/O, the board layout can scale without changing the footprint pitch or stack height.
