1.00 mm pitch, top-contact ZIF, right-angle SMT

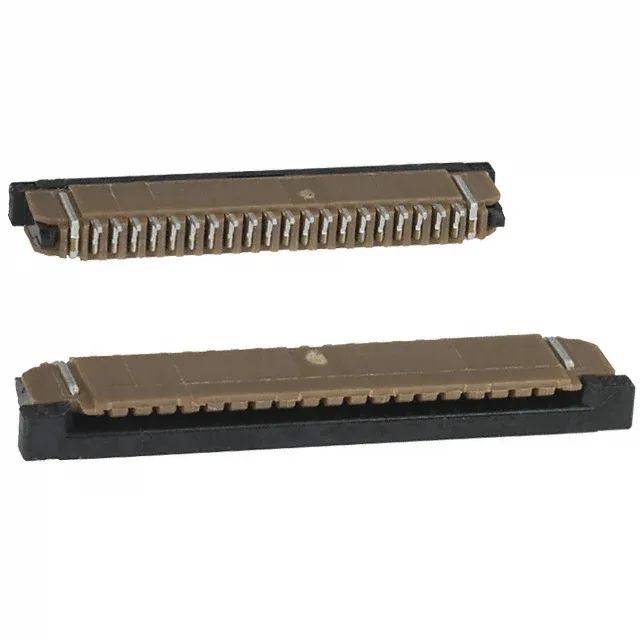

The SFW20R-2STE1LF is the 20-position member of Amphenol ICC (FCI)'s SFW-R FFC/FPC connector line, a 1.00 mm pitch ZIF right-angle surface-mount part with top-side contacts.
SFW20R-2STE1LF Amphenol ICC FCI FFC FPC 20 Pos 1mm ZIF
MPNSFW20R-2STE1LF
Active
Amphenol ICC (FCI) SFW-R FFC/FPC connector, order code SFW20R-2STE1LF, 20 positions, 1.00 mm pitch, top contact, Zero Insertion Force (ZIF), tin-plated contacts, surface-mount right-angle, solder termination.
$1.1300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSFW-R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Brown |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Height above board | 0.106\" (2.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 20 |
Product details
Frequently asked questions
What is the pitch of the SFW20R-2STE1LF?
The pitch is 0.039" (1.00 mm).
