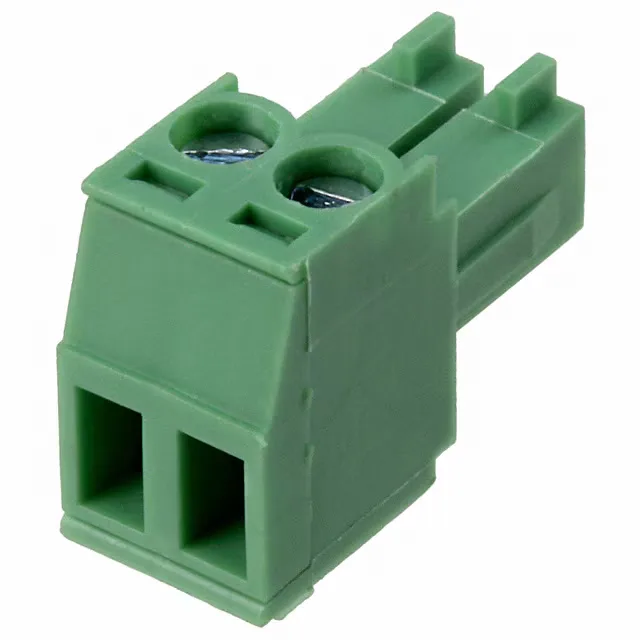

01-350 series terminal block plug, order code TJ0211530000G, 2 positions, 0.138" (3.50mm) pitch, 10 A, 300 V, tin-plated mating contacts, free hanging (in-line), screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 01-350 |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 16-26 AWG |
| Wire gauge or range - mm2 | 0.5-1.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic Resin |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The TJ0211530000G is the 2-circuit member of the 01-350 series plug, terminated via a screw rising cage clamp that accepts 16-26 AWG (0.5-1.5 mm²) wire with a 6-7 mm strip length. Rated 10 A at 300 V with tin-plated copper alloy contacts and a UL94 V-0 thermoplastic housing, the plug mates with the corresponding 01-350 header for a wire-to-board connection.
The screw rising cage clamp accepts 16-26 AWG (0.5-1.5 mm²) wire with a strip length of 6-7 mm.
The TJ0211530000G is RoHS3 compliant and the housing material carries a UL94 V-0 flammability rating.
