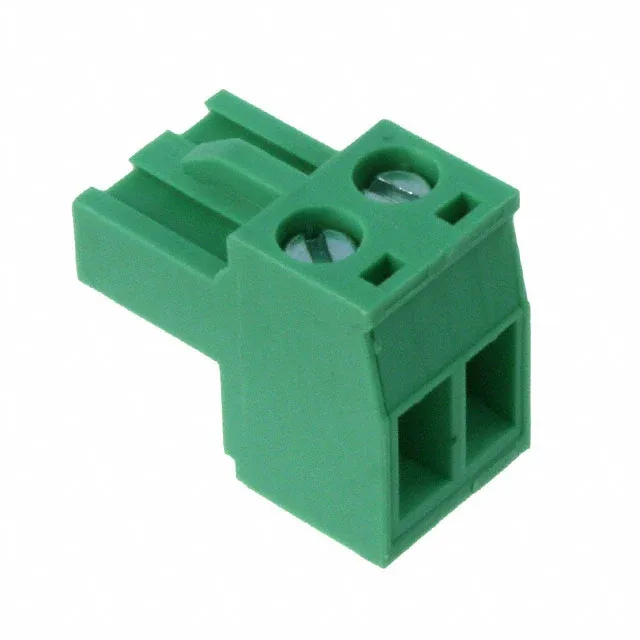

Terminal block plug, 01-508 series, order code TJ0251560000G, 2 positions, 5.08 mm pitch, 12 A, 300 V, tin-plated copper alloy contacts, free hanging, screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 01-508 |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 180° |
| Wire strip length | 7-8mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 1-2.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic Resin |
| Insulation height | 0.594\" (15.09mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The TJ0251560000G is the 2-position member of the 01-508 series plug, terminated via a rising cage clamp that accepts 12-24 AWG (1-2.5 mm²) wire with a 7-8 mm strip length. Rated 12 A at 300 V with tin-plated mating contacts, the plug mates with the corresponding 01-508 header and carries retention latches on the non-wire side to resist vibration loosening.
No pin-compatible alternative is listed within the 01-508 series — the 2-position count is unique to this order code. The series includes other position counts, but each requires a different board layout.
