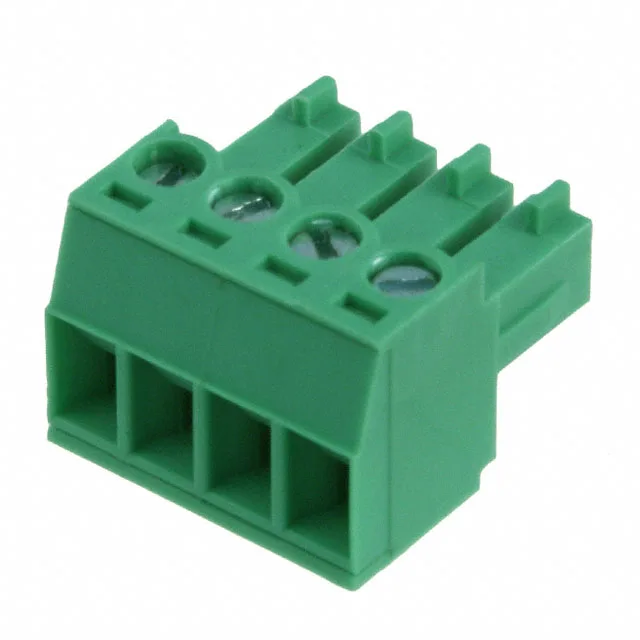

01-381 series terminal block plug, order code TJ0431530000G, 4 positions, 0.150" (3.81mm) pitch, 10 A, 300 V, green, free hanging (in-line) mounting, screw - rising cage clamp termination, tin-plated contacts.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 01-381 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 16-26 AWG |
| Wire gauge or range - mm2 | 0.5-1.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Parameter | Value |
|---|---|
| Housing material | Thermoplastic Resin |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Screw size | M2 |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The TJ0431530000G is a 4-circuit plug in the 01-381 series, free hanging (in-line), with a 0.150" (3.81mm) pitch and a single level of female sockets. Rated 10 A at 300 V with tin-plated mating contacts, UL94 V-0 thermoplastic housing, and a -40°C to 115°C operating range. ROHS3 compliant.
