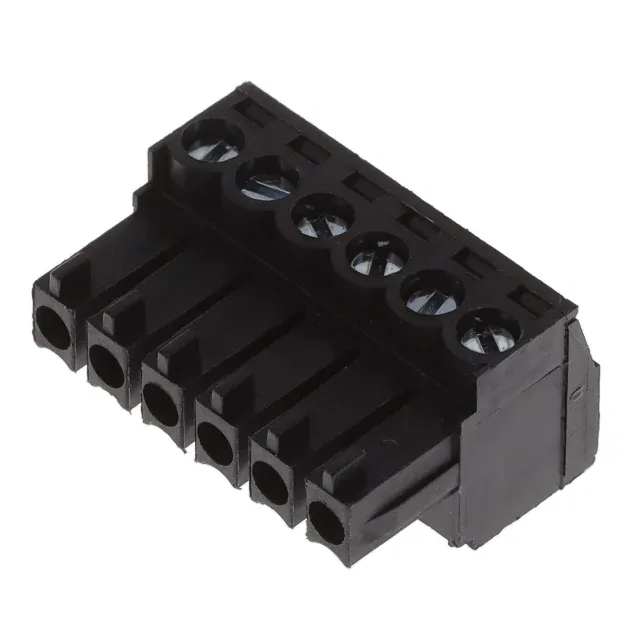

TJ series plug, female sockets, order code TJ0611030000G, 6 positions, 1 level, 0.138" (3.50mm) pitch, 10 A, 300 V, screw termination, free hanging (in-line), tin-plated phosphor bronze contacts, black thermoplastic housing.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | TJ |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 300 V |
| Current - UL | 10 A |
| Current - IEC | 10.5A |
| Plug wire entry | 180° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 1.5mm² |
| Operating temperature | -40°C ~ 115°C |
| Parameter | Value |
|---|---|
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The TJ0611030000G is the 6-position member of the TJ series terminal block plug line, a free-hanging screw-clamp plug with 0.138" (3.50mm) pitch. Rated 10 A at 300 V (UL) with tin-plated phosphor bronze contacts and a UL94 V-0 thermoplastic housing, it accepts 16-28 AWG wire with a 6-7mm strip length.
