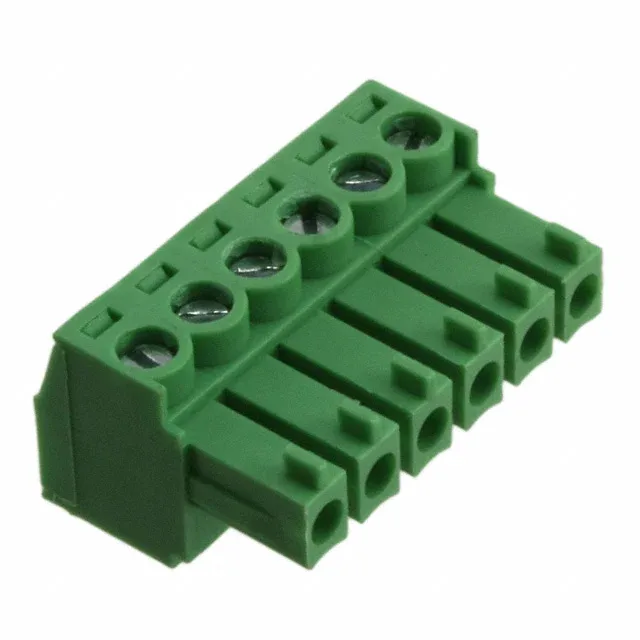

Amphenol Anytek 01-381 plug, order code TJ0631530000G, 6 positions, single level, 3.81 mm pitch, 10 A, 300 V, tin-plated mating contacts, free hanging (in-line), screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 01-381 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 16-26 AWG |
| Wire gauge or range - mm2 | 0.5-1.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Parameter | Value |
|---|---|
| Housing material | Thermoplastic Resin |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Screw size | M2 |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The TJ0631530000G is the 6-circuit member of the Amphenol Anytek 01-381 terminal block plug series, configured as a plug with female sockets for free-hanging (in-line) installation. It carries tin-plated mating contacts rated 10 A at 300 V and terminates wire via a screw rising cage clamp accepting 16-26 AWG (0.5-1.5 mm²).
