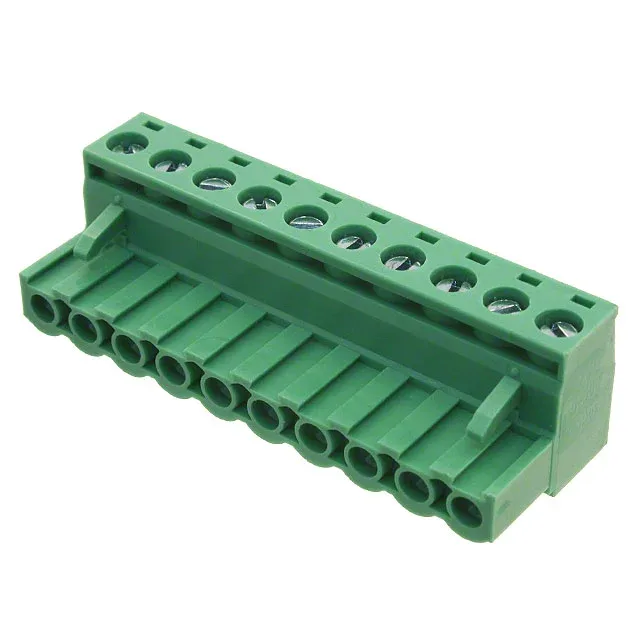

Amphenol Anytek 01-508 plug, order code TJ1051530000G, 10 positions, single level, 0.200" (5.08mm) pitch, 12 A, 300 V, tin-plated mating contacts, free-hanging, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 01-508 |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 180° |
| Wire strip length | 7-8mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 1-2.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic Resin |
| Insulation height | 0.594\" (15.09mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
The TJ1051530000G is the 10-position member of Amphenol Anytek's 01-508 series plug line, a free-hanging (in-line) female socket block with a 0.200" (5.08mm) pitch. Rated 12 A at 300 V, the tin-plated mating contacts suit signal-level and moderate-power circuits in a single-level layout.
Retention latches on the non-wire side hold the plug in the mating header; the 180° wire entry keeps the cable run straight out the back of the block.
The TJ1051530000G is stocked in Bulk packaging. Request a quote for current pricing and lead time.
The TJ1051530000G is ROHS3 Compliant with a UL94 V-0 housing material rating.
