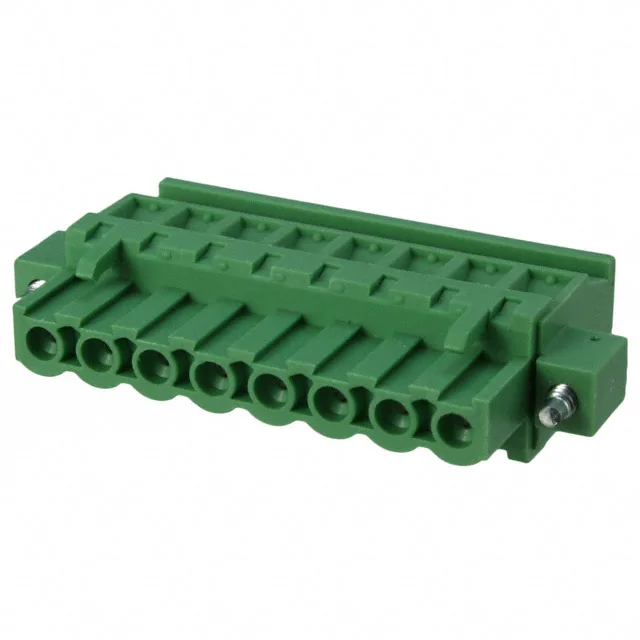

Terminal block plug, 02-508 series, order code TS08515C0000G, 8 positions, single level, 5.08 mm pitch, 12 A, 300 V, tin-plated mating contacts, free hanging, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 02-508 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 90° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 1-2.5mm² |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Copper Alloy |
| Parameter | Value |
|---|---|
| Housing material | Thermoplastic Resin |
| Insulation height | 1.024\" (26.01mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange, Retention Latches (Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
The TS08515C0000G is the 8-circuit member of the 02-508 terminal block plug series, accepting 12-24 AWG wire with a screw rising cage clamp termination. Rated 12 A at 300 V with tin-plated mating contacts, the plug mounts free hanging and enters the wire at 90°.
Retention latches on the wire side and a mating flange secure the plug to the header; the housing is UL94 V-0 thermoplastic.
Screw rising cage clamp, accepting 12-24 AWG (1-2.5 mm²) with a strip length of 6-7 mm and a screw torque of 0.4 Nm (3.5 Lb-In).
