Vertical SMT FFC connector for tight board stacks

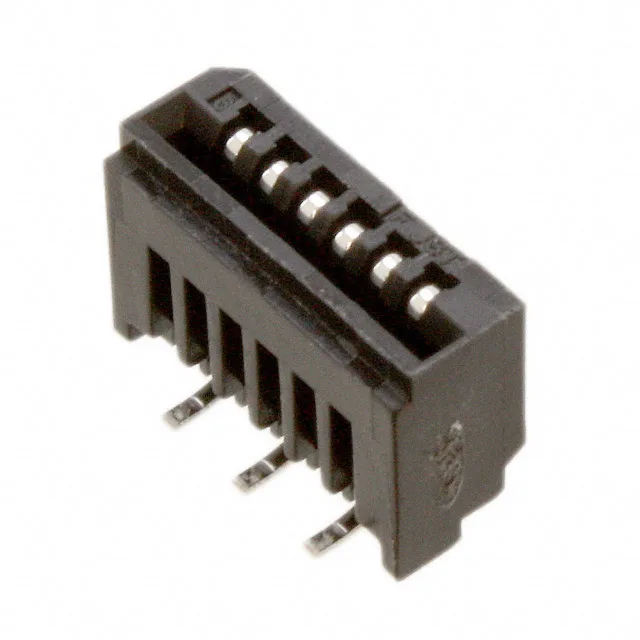

The 06FMN-BMTTN-A-TF is a 6-position FFC connector from JST's FMN series, pitched at 0.039" (1.00 mm) and terminated by solder to the board surface. It accepts a 0.30 mm thick FFC with contacts on one side, vertical orientation, and a low insertion force (LIF) design that reduces actuator wear over repeated cycles. The housing stands 0.201" (5.10 mm) above the board, which suits mezzanine or board-edge applications where the mating FFC runs straight up.
Signal-current rating and temperature envelope
Each contact is rated 0.5 A at 50 V — this is a signal-level connector, not a power interconnect.
Peer comparison: vertical vs right-angle, 6 vs 5 positions
The sibling 06FMN-SMT-A-TF shares the same 1.00 mm pitch and 6 positions but mounts at a right angle, reducing the height above board to 0.118" (3.00 mm) — a better fit for low-profile enclosures where the FFC exits parallel to the PCB.
