6-Position 1mm Pitch FFC Top-Contact Connector

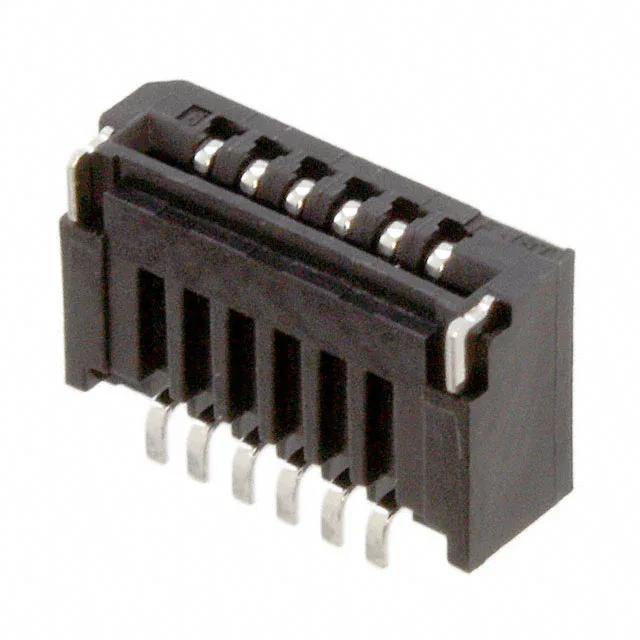

The 06FMN-SMT-A-TF is a 6-position FFC connector from JST's FMN series, with a 0.039" (1.00mm) pitch and a top-contact orientation. It terminates a 0.30mm-thick FFC cable via solder to the PCB, using a Low Insertion Force (LIF) mechanism that reduces wear on the cable pads during mating cycles. The right-angle surface-mount package keeps the connector profile low at 0.118" (3.00mm) above the board.
With 6 positions on a 1.00mm pitch, this connector matches FFC cables that have 6 conductors spaced 1.00mm apart. The top-contact design means the FFC's conductive pads face upward when the cable is inserted, which is typical for board-edge connections where the cable exits away from the board. If the BOM requires more circuits, the 7-position sibling 07FMN-SMT-A-TF shares the same 1.00mm pitch, 0.118" height, and right-angle orientation, allowing a straightforward circuit count increase without changing the footprint or stack height.
The housing is black polyamide (PA6T, Nylon 6T) rated UL94 V-0. Note that this part is listed as RoHS non-compliant, which may affect procurement for regions with RoHS restrictions.
