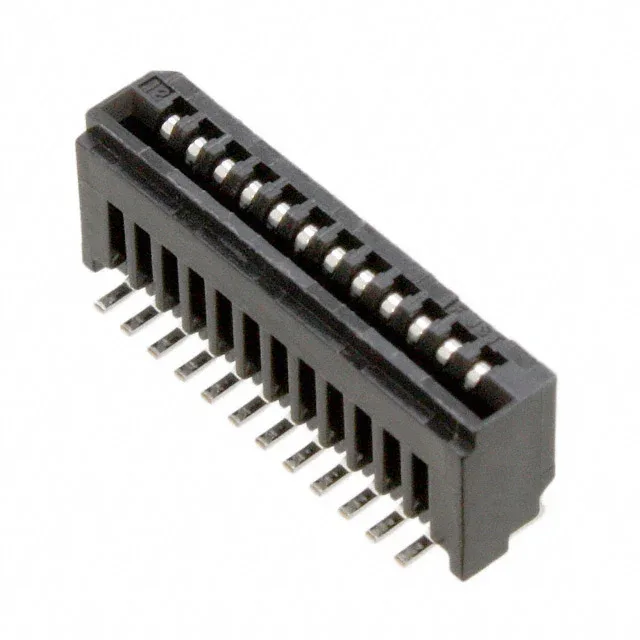

JST Sales America Inc. FMN series, 12FMN-BMT-A-TF — CONN FFC VERT 12POS 1MM SMD, 0.039" (1.00mm) pitch, 12 positions, vertical surface-mount, Low Insertion Force (LIF), tin-plated phosphor bronze contacts, 0.5 A, 50 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | FMN |
| Mounting type | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Height above board | 0.201\" (5.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Low Insertion Force (LIF) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 12 |
Surface-mount termination, vertical orientation, 0.201" (5.10 mm) height above board. Compared to the right-angle sibling 12FMN-SMT-A-TF (3.00 mm height, top-contact entry), this vertical part takes more z-height but allows the FFC to exit straight up, which can simplify cable routing in tight enclosures.
The peer 12FMN-BMT-A-TF(LF)(SN) is the RoHS-compliant version of this exact connector — same pitch, position count, and vertical SMD footprint. Swap the BOM line to that order code if your assembly requires RoHS.
It uses a Low Insertion Force (LIF) mechanism — the FFC slides in and is held by friction and the contact beam. There is no secondary locking latch; vibration resistance depends on the cable strain relief in your assembly.
